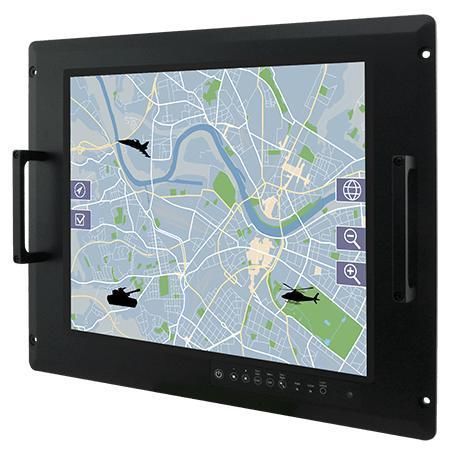

PCAP touchscreen panel PC R19IW3S-MLA3FP

multitouch screen19"Intel® Core™ i5-8265U

Overview
The R19IW3S-MLA3FP is a 19-inch rack-mount defence console panel PC engineered for command centres and mission-critical installations. Built to MIL-STD environmental and EMC standards, it combines a 19-inch SXGA display, projected capacitive multi-touch, fanless cooling and defence-grade connectors for secure, reliable integration in harsh conditions.

Key Features

• Intel® Core™ i5-8265U 1.6 GHz (up to 3.9 GHz)
• 19-inch SXGA display (1280×1024) with 350 nits brightness
• Projected Capacitive Multi Touch (PCAP) touchscreen; optional PCAP with ITO film
• Anti-corrosion metal housing; fanless thermal design
• Flush rack / rack-mount mechanical design (8U)
• Built-in ambient light sensor for auto-brightness
• 8-key OSD control pad and on-screen display controls
• Defence-grade power connector (MIL-DTL-38999/1); AC 100–240 V (default), isolated DC 9–36 V (optional)

Certifications

• MIL-STD-461E/F/G (EMC classes: RE/CE/CS/RS series)
• MIL-STD-810G/H (vibration, humidity, transit drop methods)
• CE, FCC

Technical specifications

• Display: 19.0 inches, 1280×1024 (SXGA); panel brightness 350 nits; contrast ratio 1000:1; view angles 85/85/80/80; active area 376.32×301.06 mm
• Touch / Glass: Projected Capacitive Multi Touch (default); PCAP with ITO film (optional)
• Processor: Intel Core i5-8265U (1.6 GHz base, up to 3.9 GHz)
• Memory: 1×SO-DIMM DDR4 2400 MHz, 4 GB default; options: 8/16/32 GB
• Storage: 1×M.2 2242 B-key SSD 64 GB default; up to 512 GB optional
• Ethernet: Intel I210-AT + Intel I219-LM
• OS: Windows 10 IoT Enterprise (optional)
• Environment: Operating humidity 10%–95% RH; operating temperature −20°C to 60°C; storage −30°C to 70°C
• Mechanical: Dimensions 482.6×399.3×79.6 mm; rack mount / VESA mount; metal housing with aluminum bezel
• Cooling: Fanless design
• IO: 2×USB 3.2 Gen1; Serial 1×RS232 (default) / 422 / 485; 2×RJ-45 LAN; HDMI (optional)
• Power: AC 100–240 V ±10% (default); DC 9–36 V ±10% (optional)
• Control: 8-key OSD pad (Power, Brightness−, Brightness+, Night, Day, Auto/Manual, Reset, Lock)
• Accessories: 1×Manual (hardcopy); 1×Driver CD; 1×Power cord (MIL-DTL-38999/1)

Applications

• Command and control centres
• Mission-critical defence and security installations
• System integration requiring MIL-grade connectors and EMC compliance
