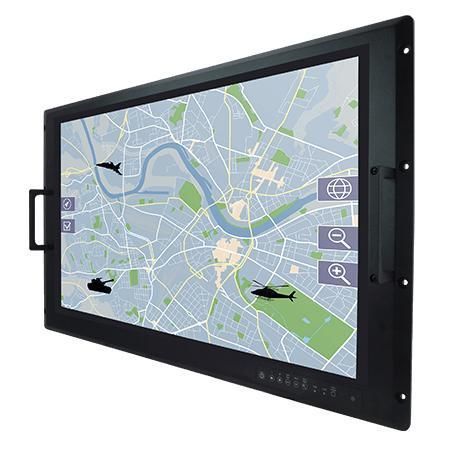

PCAP touchscreen panel PC W32IW3S-MLA3FP

multi-touch screen32"Intel® Core™ i5-8265U

Product Overview
Winmate W32IW3S-MLA3FP is a 32-inch defence console rack panel PC powered by Intel® Core™ i5-8265U, engineered for defence command centers, mobile command vehicles and mission-critical control rooms. It combines an anti-corrosion metal housing, fanless thermal design, projected capacitive multi-touch, built-in ambient light sensor for automatic brightness adjustment, flush 8U rack-mount mechanical design and MIL‑STD environmental and EMI/EMC compliance.

Key Features

• Intel® Core™ i5-8265U 1.6GHz (up to 3.9GHz)
• Anti-corrosion metal housing with fanless cooling
• 32.0" projected capacitive multi-touch, 1920 x 1080, 400 nits
• Complies with MIL-STD-810G/H and MIL-STD-461E/F/G
• Flush rack / 8U rack-mount mechanical design
• 8-key OSD control pad plus on-screen display (OSD)
• AC 110–240 V input (default); optional isolated DC 9–36 V input
• MIL-DTL-38999 type I (selectable type III) connectors available for defence integration

Overview / Use Cases
The W32IW3S-MLA3FP is optimized for defence command-and-control consoles, control rooms and mobile command centers that require MIL‑STD-tested environmental durability, EMI/EMC performance and compatibility with legacy defence connectors. Front-panel OSD and tactile controls support rapid operator adjustments; automatic brightness control adapts to changing ambient light.

Certifications & Compliance
CE, FCC. Designed and tested to meet MIL-STD-810G/H (vibration, humidity, transit drop methods) and MIL-STD-461E/F/G EMI/EMC test methods and limits.

Accessories & Packaging
Standard shipment includes one printed manual (hardcopy), one driver CD and one power cord with MIL-DTL-38999/1 connector for defence configuration. Optional accessories available on request.

Technical Specifications

• Display: 32.0 inches; Projected Capacitive Multi-Touch; 1920 x 1080; 400 nits; Contrast 4000:1; Active Area 698.4 x 392.85 mm
• Processor: Intel® Core™ i5-8265U 1.6GHz (up to 3.9GHz)
• Memory: 1 x SO-DIMM DDR4 2400 MHz — 4GB default; options: 8GB / 16GB / 32GB
• Storage: 1 x M.2 2242 B-key SSD 64GB default; optional up to 512GB
• Ethernet: Intel® I210-AT + I219-LM
• Operating System: Windows 10 IoT Enterprise (optional)
• Environmental: Operating humidity 10%–95% RH; Operating temp 0–50°C; Storage temp -10–60°C
• Compliance: MIL-STD-461E/F/G (RE/CE/CS/RS series where applicable); MIL-STD-810G/H (vibration, humidity, transit drop)
• IO Ports: 2 x USB 3.2 Gen 1; 1 x RS232 (default) / RS422 / RS485; 2 x RJ-45 LAN; 1 x HDMI (optional)
• Mechanical: 825 x 500 x 87.2 mm; VESA / Rack mount; Metal housing with aluminum bezel; Fanless design
• Power: AC 100–240V universal ±10% (default); isolated DC 9–36V ±10% optional
• Control: 8-key OSD pad (Power, Brightness DOWN, Brightness UP, Night, Day, Auto/Manual, Reset, Lock)
• Accessories: Manual (hardcopy), Driver CD, Power cord (MIL-DTL-38999/1)
