Overview

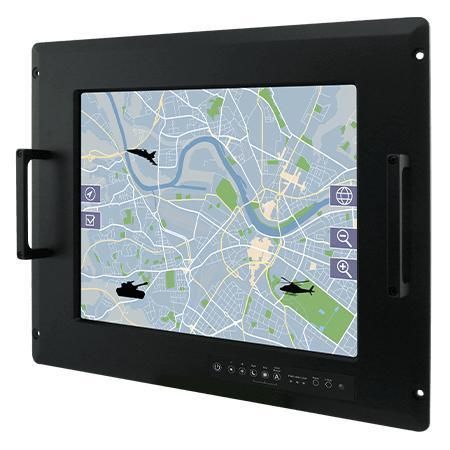

Winmate 17" Intel® Core™ i7-8665UE Defence Console Rack Panel PC designed for defence applications. Built and tested to MIL-STD-810G environmental and MIL-STD-461F EMC standards. Anti-corrosion metal housing, fanless cooling, built-in ambient light sensor for automatic brightness control and flush rack-mount mechanical design for 8U installations.

Key Features

• 17" SXGA TFT LCD, rack panel PC for defence consoles
• Intel® Core™ i7-8665UE (default); Intel® Core™ i5-8265U (optional)
• Anti-corrosion housing and fanless thermal design
• Compliant with MIL-STD-810G (environmental) and MIL-STD-461F (EMC)
• Flush rack / rack mount mechanical design (8U)
• Built-in light sensor for auto brightness control and 8-key OSD controls
• Defence-grade power & signal connectors (MIL-DTL-38999 type I / III)

Certifications (high level)

• MIL-STD-461F
• MIL-STD-810G
• FCC
• CE

Display

• Size: 17.0 inches; Resolution: 1280 x 1024 (SXGA)
• Touch / Glass: AR Protection Glass (default); optional 5-wire resistive touch; 5-wire resistive with EMI mesh filter; EMI glass
• Panel Brightness: 350 nits; Contrast Ratio: 1000:1
• View Angles: 85/85/80/80; Active Area: 337.920 x 270.336 mm

System Specification

• CPU: Intel Core i7-8665UE 1.7 GHz (up to 4.4 GHz) default; Intel Core i5-8265U optional
• Memory: 1 x SO-DIMM DDR4 2400 MHz, 4GB default (options: 8GB, 16GB, 32GB)
• Storage: 1 x M.2 2242 B-key SSD 128GB default (options: 256GB, 512GB); optional 1 x SATA III for 2.5" SSD/HDD
• Ethernet: Intel I210-AT + Intel I219-LM
• OS: Windows 10 IoT Enterprise (64-bit) optional

Environment

• Operating Humidity: 10% to 95% RH
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -30°C to 70°C

Compliance (EMC / Environmental)
MIL-STD 461E/F/G (RE101/RE102; CE101/CE102; CS/RS series) and MIL-STD 810G/H (vibration, humidity, transit drop methods). EMI options available with EMI glass/touch.

Certification

• CE
• FCC

IO Ports

• USB: 1 x USB 2.0 A Type (MIL-DTL-38999/3)
• Serial: 2 x RS-232 (MIL-DTL-38999/3)
• LAN: 1 x LAN (MIL-DTL-38999/3)

Mechanical

• Dimensions: 482 x 354 x 80 mm
• Mounting: VESA mount / flush rack mount (8U)
• Enclosure: Metal housing with aluminum bezel, anti-corrosion treatment
• Cooling: Fanless design

Accessory

• User manual (hardcopy)
• CD-ROM with driver utility
• Power cord MIL-DTL-38999/1
• RS232 cable MIL-DTL-38999/3

Power

• Power Rating: AC 100~240 V universal, ±10% (default)
• Optional: Isolation DC 9~36 V, ±10%

Control

• 8-key OSD control pad: Power; Brightness DOWN; Brightness UP; Night; Day; Auto/Manual; Reset; Lock

Technical specifications

• Model: R17IW3S-MLA1-89
• Display: 17.0" SXGA (1280x1024), 350 nits
• CPU: Intel Core i7-8665UE (default) / i5-8265U (optional)
• Memory: DDR4 SO-DIMM 4GB default, up to 32GB optional
• Storage: M.2 2242 SSD 128GB default; optional SATA III 2.5"
• Rugged standards: MIL-STD-810G, MIL-STD-461F
• I/O: MIL-DTL-38999 series connectors for USB/Serial/LAN; defence-grade power connector
• Operating Temp: -20°C to 60°C
• Mounting: Rack mount (8U) / VESA
• Enclosure: Anti-corrosion metal housing, fanless
