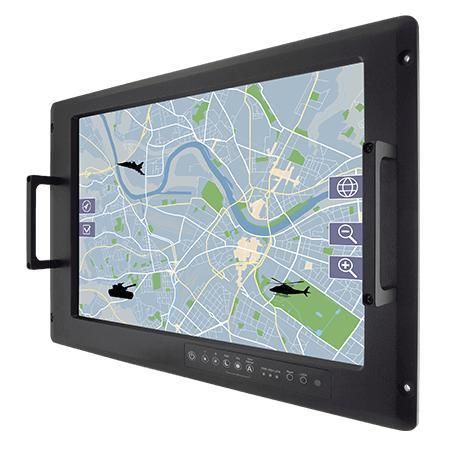

24" Intel® Core™ i7-8665UE Defence Console Rack Panel PC W24IW3S-MLS1-89

Overview
The Winmate W24IW3S-MLS1-89 is a 24" defence console rack panel PC engineered for command centers, field operations and mission-critical defence installations. Designed and verified to MIL-STD-810G environmental and MIL-STD-461F EMC standards, it provides long lifecycle availability and secure hardware integration for system integrators and OEMs.

Key Features

• 24" 1920 x 1200 high-resolution TFT LCD
• Intel® Core™ i7-8665UE processor (default)
• AC 100~240 V power input (default); DC 9~36 V optional
• Compliance with MIL-STD-810F/G and MIL-STD-461 variants
• Flush rack / rack-mount mechanical design (9U reference)
• Front OSD controls and built-in ambient light sensor
• Anti-corrosion metal housing and fanless thermal design
• Defence-grade power & signal connectors (MIL-DTL-38999/1 & 38999/3)

Reliable Computing Tailored for Defence Applications
All units are manufactured and tested to MIL-STD-810G environmental and MIL-STD-461F EMC requirements. Internal reliability tests validate performance under vibration, humidity and transit conditions expected in defence environments.

Command Center-Focused Design
Ergonomic layout for control rooms and command consoles. Supports flush rack or standard rack-mount installation to integrate into operator stations and improve space efficiency in 8U/9U configurations.

Defence-Grade Connectors & Compatibility
Equipped with MIL-DTL-38999 Type I power connector and, for selected configurations, MIL-DTL-38999 Type III I/O connectors to ensure compatibility with existing defence cabling and mission-critical panel interfaces.

Touch & Controls
User-friendly touchscreen with physical OSD buttons on the front panel for fast local control. Built-in light sensor enables automatic brightness adjustment to ambient lighting.

Certifications & Compliance
Certifications include MIL-STD 461 (E/F/G variants), MIL-STD 810G/H, FCC and CE. Specific EMC listings cover RE101/RE102, CE101/CE102, CS118, RS101/RS103 and related items when EMI glass/touch options are selected.

Accessories

• User manual (hardcopy)
• CD-ROM with driver utility
• Power cord MIL-DTL-38999/1
• RS232 cable MIL-DTL-38999/3

Technical Specifications

• Display — Size: 24.0 inches; Resolution: 1920 x 1200; Brightness: 300 nits; Contrast: 1000:1; Active Area: 518.4 x 324.0 mm; View Angles: 89/89/89/89
• Touch / Glass — AR Protection Glass (default); EMI ITO Glass (optional); 5-wire resistive touch (optional); 5-wire resistive + EMI mesh filter (optional)
• Processor — Intel Core i7-8665UE 1.7 GHz (up to 4.4 GHz) default; Intel Core i5-8265U optional
• Memory — 1 x SO-DIMM DDR4 2400 MHz; 4 GB default; options: 8/16/32 GB
• Storage — 1 x M.2 2242 B-key SSD 128 GB default; optional 256/512 GB; 1 x SATA III for 2.5" SSD/HDD optional
• Ethernet — Intel® I210-AT + I219-LM
• OS — Windows 10 IoT Enterprise (64-bit) optional
• Operating Humidity — 10% to 95% RH
• Operating Temperature — 0 ~ 50 °C; Storage Temperature — -10 ~ 60 °C
• Compliance — MIL-STD 461E/F/G; MIL-STD 810G/H (vibration, humidity, transit drop)
• Certifications — CE, FCC
• IO Ports — USB: 1 x USB 2.0 A Type (MIL-DTL-38999/3); Serial: 2 x RS-232 (MIL-DTL-38999/3); LAN: 1 x LAN (MIL-DTL-38999/3)
• Mechanical — Dimensions: 609.5 x 399.3 x 76.2 mm; Mounting: VESA / Rack Mount; Enclosure: Metal housing with aluminum bezel; Cooling: Fanless
• Power — AC 100~240 V default; DC 9~36 V optional
• Control — 8-key OSD control pad: Power, Brightness DOWN/UP, Night, Day, Auto/Manual, Reset, Lock
