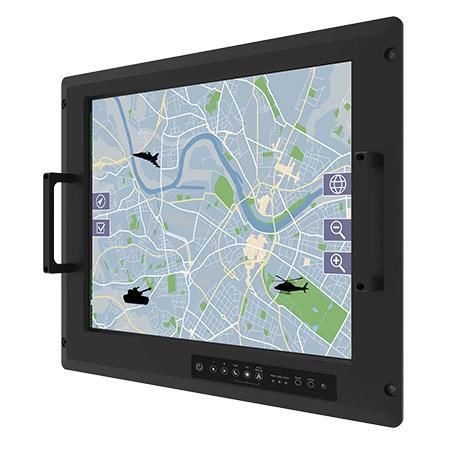

TFT LCD panel PC R19IW3S-MLA3-89

resistive touch screen5-wire resistive touch screentouch screen

Overview
The R19IW3S-MLA3-89 is a 19" defence-grade console rack Panel PC for command centers and mission-critical environments. Built to MIL-STD-810G environmental and MIL-STD-461F EMC standards, it features anti-corrosion metal housing, fanless cooling and MIL‑DTL‑38999 power/signal connectors for system compatibility.

Key Features

• 19" SXGA TFT LCD (1280 x 1024)
• Intel® Core™ i7-8665UE processor (default)
• Anti-corrosion housing; fanless design
• Compliant with MIL-STD-810G / MIL-STD-461E/F/G
• Flush rack / 9U rack-mount mechanical design
• On-screen display (OSD) and physical OSD buttons
• AC 110~240 V standard input; optional isolated DC 9~36 V input
• Built-in ambient light sensor for auto-brightness
• Defence-grade connectors (MIL‑DTL‑38999 Type I & Type III)

Certifications

• MIL‑STD 461E/F/G (RE101 / RE102 / CE101 / CE102 / CS118, etc.)
• MIL‑STD 810G/H (vibration, humidity, transit drop)
• CE
• FCC

Product Highlights

• Rugged computing platform tested for defence environmental and EMC requirements.
• Ergonomic console design optimised for control rooms and command centers with rack integration.
• MIL‑DTL‑38999 connectors ensure compatibility with existing defence systems; Type I for power and optional Type III for I/O.
• Touchscreen options and physical OSD controls for quick front-panel access.
• Automatic brightness control via built-in light sensor.

System & Platform

• Processor: Intel Core i7-8665UE 1.7 GHz (up to 4.4 GHz) default; Intel Core i5-8265U optional.
• Memory: 1 x SO-DIMM DDR4 2400 MHz, 4 GB default; options: 8 GB / 16 GB / 32 GB.
• Storage: 1 x M.2 2242 B-key SSD 128 GB default; options 256 GB / 512 GB; optional 1 x SATA III for 2.5" drive.
• Ethernet: Intel® I210-AT and I219-LM controllers.
• OS: Windows 10 IoT Enterprise (64-bit) optional.

Display & Touch

• 19.0" SXGA (1280 x 1024) display.
• Brightness 350 nits; contrast 1000:1; viewing angles 85/85/80/80.
• Active area: 376.32 x 301.06 mm.
• Touch/Glass: AR protection glass default; optional 5-wire resistive, resistive with EMI mesh, or EMI glass.

Environment

• Operating humidity: 10%–95% RH.
• Operating temperature: -20°C to 60°C.
• Storage temperature: -30°C to 70°C.

Compliance & Military Standards

• MIL‑STD 461 (RE/CE/CS/RS series as applicable) with EMI glass/touch options.
• MIL‑STD 810G/H covering vibration, humidity and transit drop tests.

IO Ports

• USB: 1 x USB 2.0 A Type (MIL‑DTL‑38999/3)
• Serial: 2 x RS-232 (MIL‑DTL‑38999/3)
• LAN: 1 x LAN (MIL‑DTL‑38999/3)

Mechanical

• Dimensions: 482.6 x 399.3 x 81.4 mm.
• Mounting: VESA mount / Rack mount (flush rack, 9U mechanical design).
• Enclosure: Metal housing with aluminum bezel; anti-corrosion treatment.
• Cooling: Fanless design.

Power

• Power rating: AC 100~240 V universal (±10%) default; optional isolated DC 9~36 V (±10%).

Control

• 8-key OSD control pad: Power, Brightness DOWN, Brightness UP, Night, Day, Auto/Manual, Reset, Lock.

Accessories

• Included / optional: User manual (hardcopy), CD-ROM with driver utilities, power cord MIL‑DTL‑38999/1, RS232 cable MIL‑DTL‑38999/3.

Technical specifications

• Model: R19IW3S-MLA3-89
• Brand: Winmate
• Display Size: 19.0 inches (SXGA 1280 x 1024)
• Processor (Default): Intel Core i7-8665UE (1.7 GHz, up to 4.4 GHz)
• Memory (Default): 4 GB DDR4 2400 MHz (1 x SO-DIMM); up to 32 GB optional
• Storage (Default): M.2 2242 B-key SSD 128 GB; optional 256/512 GB; optional SATA III for 2.5" drive
• Brightness: 350 nits; Contrast: 1000:1
• Touch Options: AR Protection Glass default; optional resistive or EMI glass
• Dimensions: 482.6 x 399.3 x 81.4 mm
• Mounting: VESA / Rack mount
• Power Input: AC 100~240 V default; DC 9~36 V isolated optional
• Environmental: Operating -20°C to 60°C; Storage -30°C to 70°C; Humidity 10%–95% RH
• Standards & Certifications: MIL‑STD‑810G/H, MIL‑STD‑461E/F/G, CE, FCC
• IO: USB 2.0 A (MIL‑DTL‑38999/3), 2 x RS-232 (MIL‑DTL‑38999/3), 1 x LAN (MIL‑DTL‑38999/3)
• Enclosure: Metal housing with aluminum bezel; anti-corrosion; fanless
