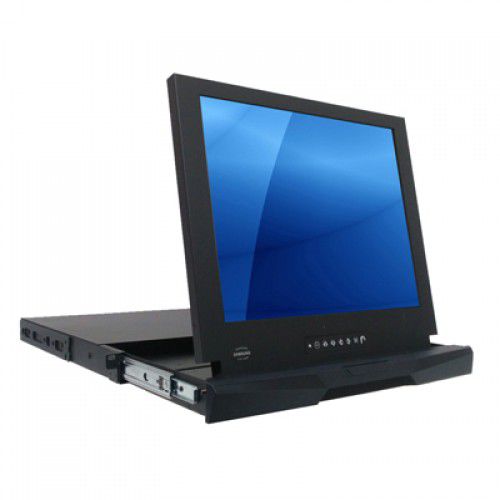

Console rack drawer RP1170

keyboardLCD monitor1U

The RP1170 is a 17" rackmount LCD monitor drawer supporting 1280 x 1024 native resolution, VGA + HDMI video input, and a 100/240VAC power input in a 1U high 19.7" (500mm) short-depth rack drawer. The monitor drawer features an LED touch on-screen display (OSD), providing users with a convenient way to the device settings. The 17-inch industrial monitor comes with 1280 x 1024 display resolution and standard VGA plus HDMI video input connector on the back of the rack drawer for your rackmount server connection. The built-in OSD (on-screen display) function lets you adjust the rack mount monitor for the best view, All the OSD buttons are located on the front of the monitor for easy access and adjust. The monitor can be tilted to a 90-degree horizontal angle for better viewing. The auto-shutoff function enables whenever the monitor drawer is back to its resting position which allows it to extend the LCD monitor's life. Option for DVI-D/ BNC / Audio / Speaker / 3G-SDI input. The low profile 1U high rack mount drawer saves the rack cabinet's space, The integrated ball-bearing slide rail is mounted on each side of the drawer allows user to pull-out the drawer from the 19-inch wide cabinet. The Key locker or thumb locker is installed on the front panel to lock the drawer inside the rack when the monitor is not in use. The industrial monitor comes with a standard 6 foot VGA / DVI cable. Option for 10 feet, 15 feet, and 25 feet cable is available. The monitor drawer comes with a 100/240VAC auto-switching power input. The monitor drawer is ready to mount into a standard 19-inch cabinet and the rear mounting bracket can be extended up to 600mm depth rack cabinet.
