Console rack drawer KD81712

keyboardLCD monitor1U

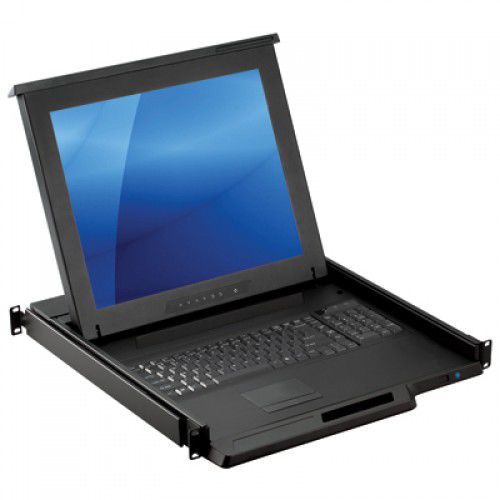

The KD81712 is a 17" rack LCD console with an integrated 12-port DVI-D KVM switch and 104-key keyboard with a touchpad in a 1U high 22.8" depth rack drawer. THe console features one local console, a slim design with molded front handle, a configurable on-screen display (OSD), and a hotkey combination. KD81712 is equipped with a 17-inch monitor keyboard drawer with 12 port DVI KVM switch. The heavy-duty steel rack mount drawer is 1U high and 22.8 inches in depth. The LCD panel displays 1280 x 1024 resolution, 250nit brightness, 1000:1 contrast ratio, and 16.7 million colors. The backlight is of CCFL and the mean time between failures is 50,000 hours. The 104-key keyboard comes with a 2-button touchpad is combo-free, and has the option for a trackball. The KVM switch controls for advanced user profiles and configurable on-screen display, hotkey combination, multi-lingual on-screen display menu, and supports eight characters password protection. The 12 x DVI KVM ports cover 1x DVI, 1x USB 3.0 port for the keyboard and mouse. Option for 6ft or 15ft DVI-D + USB KVM cables. The video input is DVI-D with the option for a stereo speaker. The dimension measures at 17.4"(W) x 22.8"(D) x 1.73"(H) and 28.6 lbs. The operational temperature can withstand from 0°C to 55°C. The anti-shock resists at 10G acceleration (11ms duration). The anti-vibration resists at 10~ 300Hz 0.5G RMS random vibration.
