Console rack drawer KD8121

keyboardLCD monitor1U

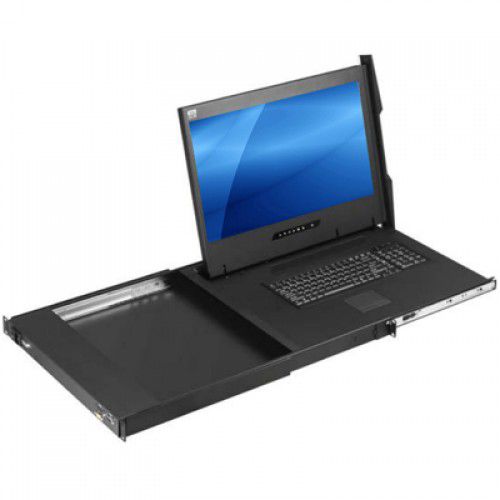

The KD8121 is a 21.5" Full HD rack LCD console drawer supporting 1920 x 1080 native resolution, VGA + DVI-D input, and a LED touch on-screen display (OSD) that allows users a convenient way to control device settings. The 1U LCD drawer is integrated with a 104-key keyboard with a 2-button touchpad and features a side-open design for different installation environments. Material Heavy-duty steel LCD Monitor Size: 21.5 inch Native Resolution: 1920 x 1080 Brightness (cd/m²): 250 Contrast Ratio (typ.): 1000:1 Colors: 16.7 M Viewing Angle (H/V): 170° x 160° Response Time (ms): 5 Dot Pitch (mm): 0.248 Display Area (mm): 476.64H x 268.11V Surface Treatment: Haze 25%, Hard-coasting Surface Hardness: 3H Backlight: LED MTBF (hrs): 30,000 Keyboard & Pointing Device 104-key keyboard with 2-button touchpad - USB port Option for keyboard with trackball or SUN keys Video Input VGA + DVI-D video input Option for HDMI, Audio, DP, BNC + S-Video, Front USB Hub, or 3G-SDI Integrated KVM (Option) Integrated KVM switch is only available upon request Option for VGA KVM, USB Hub VGA KVM, DVI-D KVM, Cat6 KVM, or Matrix Cat6 KVM integration Drawer Design Pull-out drawer with side access design KD8121: Left side open KD8121R: Right side open Mounting Distance 24.8 ~ 33.9 inch (630 ~ 860 mm) Cable 1 x 6ft DVI-D USB console cable included Power Supply Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 28W, Standby 2W Option for 12V / 24V / 48V / 125V DC power input Weight 32.3 lb / 14.7 kg Dimension 17.4"(W) x 26.4"(D) x 1.73"(H)
