Console rack drawer KD80174

keyboardLCD monitor1U

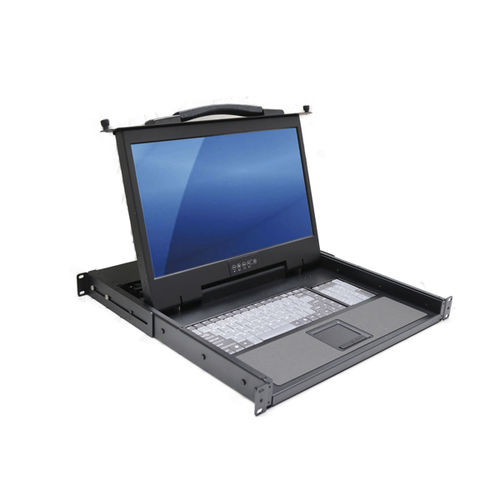

Rackmount console drawer with a 17.3 inch 3840 x 2160 4K UHD industrial LCD monitor, HDMI + DP + DVI inputs, keyboard with touchpad, IP22 rated fanless design, and a 1U high 19.69 inch depth chassis. Option for a 12VDC power input with MIL-type connector or 9 to 36VDC power input with or without D38999 connector. Material IP22 rated fanless design LCD Panel Size: 17.3 inch Resolution: 3840 x 2160 Brightness: 400-nit Contrast Ratio: 1000 : 1 Active Area (mm): 382.12(H) x 214.94(V) Pixel Pitch (mm): 0.0995(H) x 0.0995(V) Viewing Angle: 178°(H) and 178°(V) Backlights: LED Colors: 16.7M Video input HDMI + DP + DVI input Keyboard & Keypad 104-key keyboard and touchpad OSD (On-Screen Display) OSD Input: 5-key OSD control buttons OSD Function: PIP, Contrast, Color, Position, Auto-adjustment, Factory Settings Power Supply Input: 12V DC power input with external power adapter Power consumption: 50W (typ.) Option for: (1) 12VDC with MIL-type connector and external power adapter (2) 9 to 36VDC power input (3) 9 to 36VDC power input with D38999 connector Connector 1 x HDMI 1.4 Input 1 x HDMI 2.0 Input 1 x DP 1.2 Input 1 x DVI Input 1 x 12V DC input (Terminal Block) Weight 17.64 lb / 8 kg Dimension 19.06"(W) x 19.69”(D) x 1.73"(H) Environmental Operating Temperature: 0°C to 50°C (32°F to 122°F) Storage Temperature: -30°C to 70°C (-22°F to 158°F) Relative Humidity: 10-95%, non-condensing
