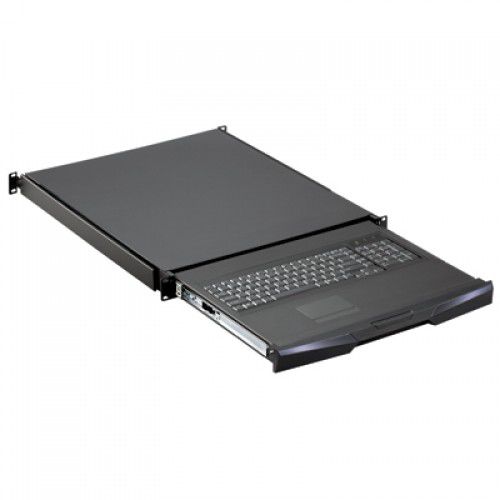

Console rack drawer RK120D

keyboard1U

Rackmount keyboard drawer with an 8-port VGA KVM switch, one local console, and a 104-key keyboard with touchpad in a 1U high 23.6-inch depth rackmount drawer. The keyboard drawer features front mounting holes that allow you to easily mount the drawer into any 19-inch rackmount cabinet or server rack. Option for 16-port VGA KVM switch, remote or IP user console, SUN keyboard layout, and VGA + USB KVM cables. PRODUCT DESCRIPTION 1U high Keyboard drawer with built-in 8 or 16 ports KVM switch to remote access the rackmount servers. This industrial grade compact 104 keys keyboard drawer is enclosed by a sealed aluminum chassis for maximum strength and ruggedness. Aluminum is corrosion-resistant, electrical and thermally conductive, and impermeable by nature. The drawer features one 330mm rear mounting L-bracket. RK120 uniquely integrates a KVM switch that allows users to access multiple servers and computers all at once right from an original source of one keyboard, video monitor, and mouse console. KVM improves the use of space by eliminating useless keyboards, monitors, and mouse consoles. The switch comes with DB-15 KVM ports and Matrix KVM functions. (All multi-lingual supported). This model contains eight DB-15 KVM ports, one local console (option for user console), one local + two remote with receivers, or one local + one with IP with an RJ-45 port. It includes an option for double at 16 ports. The rugged keyboard drawer provides one RJ-45 port, which is up to 150 meters of Cat6 cable, one KVM port with one 6 inch KVM cable for remote console computers, one VGA port for screen displays, and two USB ports for keyboard and mouse consoles.
