Multiple display rack drawer KDR-4K17 series

keyboard2U

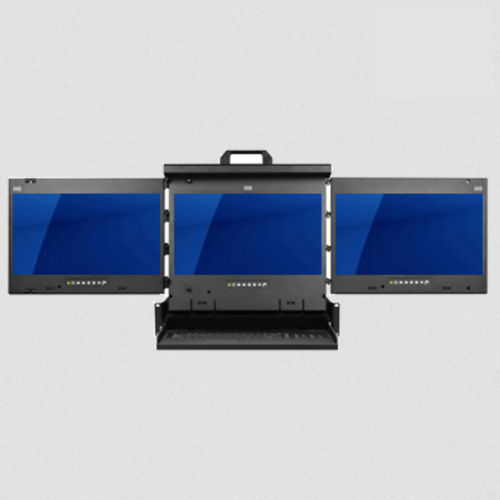

The KDR-4K17 is a 2U 4K multi-display console drawer featuring 17.3" 4K LCD monitors supporting 3840 x 2160 native resolution, Display Port 1.2 video inputs with attached 6ft DP cables, a 104-key keyboard with touchpad, and 100/240VAC power input in a 2U high rack enclosure. Material Heavy-duty steel LCD Panel Size: 17.3 inch Resolution: 3480 x 2160@60Hz Brightness (cd/m²): 400 Contrast Ratio (typ.): 1000:1 Display Area (mm): 382.12H x 214.94V Viewing Angle (H/V): 178° x 178° Response Time (ms): Max. 16 Dot Pitch (mm): 0.0995 Colors: 16.7M, 8-bit Surface Treatment: Anti-Glare Surface Hardness: 3H Backlight Type: LED MTBF (hrs): 15,000 LCD Mounting Position KDR-4K17-2L: Dual display (left hinged mount) KDR-4K17-2R: Dual display (right hinged mount) KDR-4K17-3: Triple display KB & MS 104-key keyboard with touchpad pointing device Option for trackball pointing device Video Input Standard: DP 1.2 video input w/ attached 6ft DP cable (per panel) Option: HDMI 2.0 video input (per panel) Front Panel Control Power on/off switch OSD (on-screen display) Drawer Design Built-in solid bearing slide rails Mounting Distance: 21.7~31.1 inch (550~790 mm) Power Supply Input: Auto-sensing 100 to 240VAC, 50/60Hz Consumption Per Panel: Max. 21W, Saving Mode 2W Option for 12V / 24V / 48V DC power input Color Black Weight Dual Display: 46.2 lb / 21 kg Triple Display: 56.5 lb / 25.7 kg Dimension Product: 17.4"(W) x 21.7"(D) x 3.5"(H) Packing: 22.8"(W) x 26.9"(D) x 7.8"(H)
