Console rack drawer KDM8190

keyboardLCD monitor1U

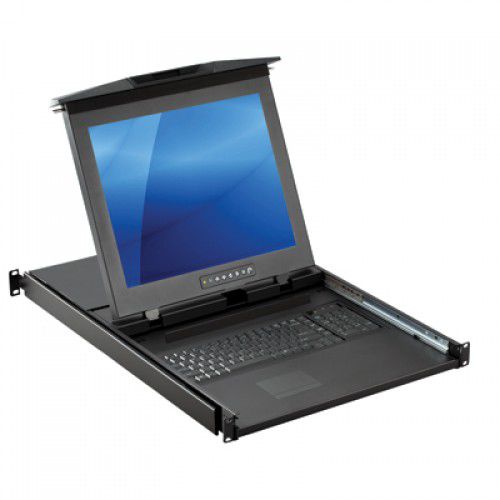

The KDM8190 is a 19" rackmount LCD drawer with a 104-key keyboard with touchpad integrated into a 1U slim rack mount drawer designed for a 19" rack mount space. It supports VGA video input and an auto-sensing 100 to 240VAC power input. The rack console features a dual-slide design that allows the LCD display and keyboard to slide on independent rails, allowing the monitor to stay up when the keyboard is stored. Option for DVI-D / HDMI / SDI input and DC power input. PRODUCT DESCRIPTION KDM8190 is a 19-inch dual slide keyboard drawer with a 1280 x 1024 industrial LED backlight LCD monitor, 104-key keyboard with touchpad, VGA video input, and resistance to shock and vibration. The monitor is integrated into a 1U high 25.6-inch depth rackmount drawer with dual ball-bearing slide rails that allows the monitor and keyboard to slide out independently. The monitor is equipped with 2-position lock handles and OSD controls on the front panel. The LCD supports 250 nit brightness, 1000:1 contrast ratio, 16.7 million colors, 30,000 hours mean time between failure, and LED backlight. It comes with a VGA video input and provides options for DVI-D, BNC, HDMI, Audio, or 3G/HD/SD-SDI input. A 1 x 6 feet KVM cable is provided with the monitor. Option for a 10 or 15 feet KVM cable is available. KDM8190 comes with an external 100/240 auto-sensing AC power input. Option for 12V / 24V / 48V / 125V DC power supply
