Console rack drawer MKD6017D

keyboardLCD monitor1U

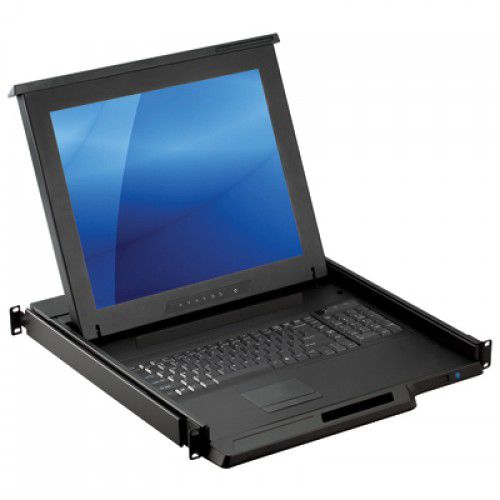

The MKD6017D is a 17-inch 1280 x 1024 industrial LCD monitor keyboard drawer with a KVM switch that allows for efficiency and productivity. The LCD displays 16.7 million colors and has a contrast ratio of 1000:1 and a mean time between failures of 30,000. The LCD accepts VGA video input and comes with a 104-key keyboard with a two-button touchpad. The MKD6017D runs on an auto-sensing 100 to 240VAC, 50/60Hz power input. With a compact dimension of 17. inches in width, 22.8 inches in diameter, and 1.73 inches in height, this 1U rackmount drawer is comprised of heavy-duty steel, promising durability in any harsh operating environment. With the 8-port DB-15 KVM switch and an option for the 16-port DB-15 KVM switch, this rack console offers efficiency, productivity, space savings, and better management. KVM switch connects a keyboard, video, and mouse which is ideal to be used in server rooms, assembly lines, and help desks. By controlling the computers with one keyboard, video, and monitor it will boost efficiency by eliminating unnecessary devices, therefore, saving space to use for other practices. The MKD6017D will improve productivity by being able to work without any hindrances of mixing cables and better managing by having control over several kinds of servers. The MKD6017D has eight KVM ports using one VGA, USB, or PS/2 for the keyboard and mouse. Option for 6ft / 10ft / 15ft VGA + USB KVM cables. The cascade port provided is an in/out proprietary cascade KVM port that can be extended up to 8 levels of cascade. The KVM switch uses advanced user profiles and is configurable for on-screen display and hotkey combination.
