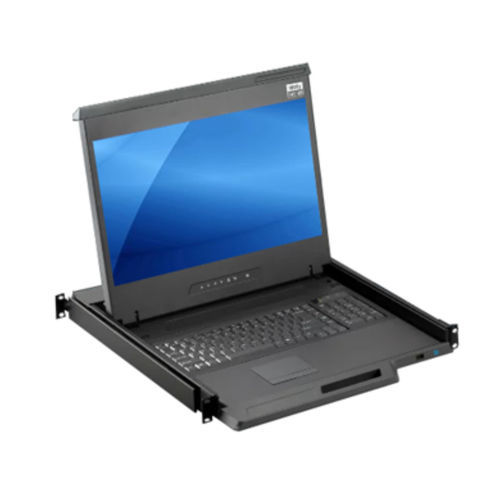

Console rack drawer MKD6217D

with built-in KVM switchkeyboardLCD monitor

The MKD6217D is a 17.3-inch FHD rack LCD console drawer with an integrated 104-key keyboard with touchpad and 8-port VGA KVM switch. The display supports 1920 x 1080 resolution, 300-nits brightness, 1000:1 contrast ratio, and 16.7 million colors. The console supports 8 or 16 DB-15 KVM ports, 1 x local console, and 1 x in / out propriety cascade KVM port. Material Heavy-duty steel LCD Panel Size: 17.3" Native Resolution: 1920 x 1080 Brightness (cd/m²): 300 Contrast Ratio (typ.): 1000: 1 Colors: 16.7 M, 8-bit Viewing Angle (H/V): 178° x 178° Response Time (ms): 25 Dot Pitch (mm): 0.1989 Display Area (mm): 381.888H x 214.812V Surface Treatment: Anti-glare, Hard-coating Surface Hardness: 3H Backlight: LED MTBF (hrs): 15,000 Keyboard & pointing device 104-key keyboard with 2-button touchpad - USB KVM Port Number of Ports: 8 or 16 Connector: DB-15 combo connector Connectivity: USB 2-in-1 KVM cable, up to 6, 10 & 15 feet Local Console Connector: 1 x VGA Input Device: 2 x USB ports for keyboard & mouse Remote Console (Option) Connector: 1 x DB 15-pin, VGA Input Device: 2 x USB type A for keyboard & mouse Remote I/O: 1 x RJ-45 port via Cat6 cable up to 150 meters Receiver Box: 1 x receiver box for remote console Cable: 1 x 6ft VGA + USB KVM cable for receiver box
