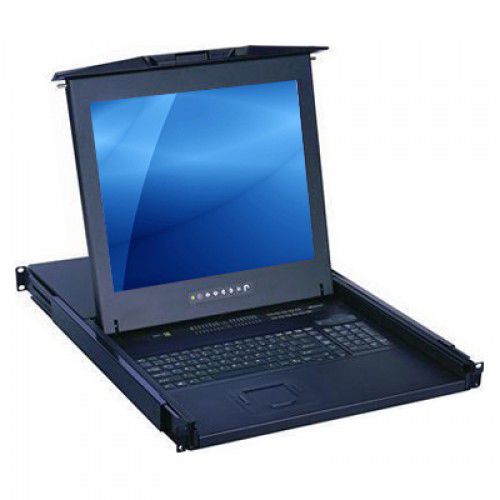

Console rack drawer KDS6178

with built-in KVM switchkeyboardLCD monitor

Rack KVM console with 17 inch 1280 x 1024 and 1152 x 900 industrial monitor, 104-key keyboard with SUN function keys and 3-button membrane touchpad, 8 port KVM switch, and a 1U high 22.84 inch depth rackmount drawer. Material Heavy-duty steel LCD Panel Size: 17 inch Resolution: 1152 x 900 (Direct) / 1280 x 1024 (Native) Brightness (cd/m²): 250 Contrast Ratio (typ.): 1000:1 Response Time (ms): 5 Display Area (mm): 337.92H x 270.33V Viewing Angle (H/V): 170° x 160° Backlight: LED Colors: 16.7M MTBF (hrs): 30,000 Keyboard & Pointing Device 104-key keyboard with full numerical pad and SUN function - USB interface Pointing Device: 3-button touchpad (standard) Option for keyboard with trackball Video Input Analog RGB, 0.7Vp-p Plug & Play DDC EDID 1.3 KVM Switch Number of Ports: 8 Connector: Proprietary DB-15 KVM connector Cascades Level: Up to 128 servers by 8-level cascade Hardware Compatibility: HP / IBM / Dell PC, Server and Blade Server, SUN / Mac O/S Support: Windows / Linux / Unix / Mac OS KVM Management Multilingual OSD: English, France, German, Spanish, Italian, Russian, Simplified Chinese, Japanese Hotkey Combination: Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win Security: Password enable & disable, up to 8 users profile for port access PC Selection: Front button, OSD menu & hotkey KVM switch Connector 8 x D-Sub 15 pin (female) for VGA / Keyboard /mouse (Combo Interface, USB or PS/2) 1 x D-sub 15 pin for cascades port Cable 8 x 6' 4-in-1 KVM cable for VGA / Keyboard / Mouse
