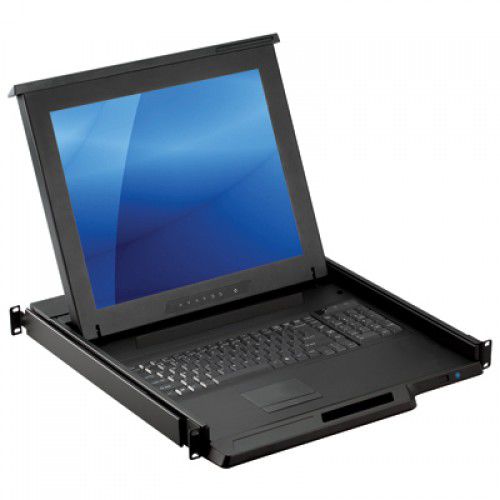

Console rack drawer MKD6217U

with built-in KVM switchkeyboardLCD monitor

The MKD6217U is a 17.3" FHD rack LCD console drawer with an integrated 104-key keyboard with touchpad and an 8-port VGA USB Hub KVM switch. There are two USB peripheral hub ports that let you share USB 2.0 peripheral devices, storage devices, printers, and any other devices, among computers connected to the KVM console. The display supports 1920 x 1080 FHD resolution, 300-nits brightness, 1000:1 contrast ratio, and 16.7 million colors. The console supports 8 x DB-15 KVM ports, 1 x local console, and 1 x in/out proprietary cascade KVM port. Material Heavy-duty steel LCD Panel Size: 17.3" Native Resolution: 1920 x 1080 Brightness (cd/m²): 300 Contrast Ratio (typ.): 1000: 1 Colors: 16.7 M, 8-bit Viewing Angle (H/V): 178° x 178° Response Time (ms): 25 Dot Pitch (mm): 0.1989 Display Area (mm): 381.888H x 214.812V Surface Treatment: Anti-glare, Hard-coating Surface Hardness: 3H Backlight: LED MTBF (hrs): 15,000 Keyboard & pointing device 104-key keyboard with 2-button touchpad - USB KVM Port Number of Ports: 8 Connector: DB-15 combo connector Connectivity: Combo 2-in-1 VGA + USB KVM cable, 6, 10, or 15 feet Local Console Connector: 1 x VGA Input Device: 2 x USB ports for keyboard & mouse USB Hub 2 x USB type A for sharing other peripheral devices among the computers Remote Console (Option) Connector: 1 x DB 15-pin, VGA Input Device: 2 x USB type A for keyboard & mouse Remote I/O: 1 x RJ-45 port via Cat6 cable up to 150 meters Receiver Box: 1 x receiver box for remote console Cable: 1 x 6ft VGA + USB KVM cable for receiver box
