Console rack drawer KD8124

keyboardLCD monitor1U

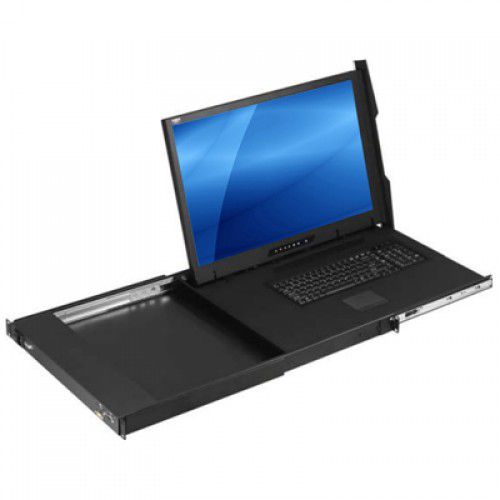

The KD8124 is a 1U 24.1" WUXGA rackmount LCD console drawer supporting 1920 x 1200 native resolution, VGA + DVI-D video input, a 104-key keyboard with touchpad or trackball, and a 100/240VAC power input. The console features a side-open design with left or right side open design, making it an ideal solution for server rooms or data centers. PRODUCT DESCRIPTION KD8124 is a 1U high console drawer that displays a 24-inch widescreen supporting 1920 x 1200 native WUXGA ultra-high resolution. The drawer is side accessible design, which can slide out from either the left or right side. The 104-key keyboard comes with either a touchpad or a trackball. The SUN Micro or MAC keyboard options are also available. The new enhanced aesthetics is the molded front handle. The front USB port is for device access and it is only for USB Hub KVM. KD8124 displays a 24.1” widescreen TFT LCD panel of 1920 x 1200 display resolution. The brightness is 300 with 16.7 M colors. The contrast ratio is 1000:1 and the LED backlight. The mean time between failure (MTBF) is 30,000 hours. The video input supports standard VGA + DVI-D input with optional HDMI or SDI input. The console drawer can tolerate operating temperatures from 0°C to 55°C and storage temperatures at -20°C to 60°C. The operating humidity can withstand 20~90%, non-condensing, and storage humidity at 5~90%, non-condensing. Its operating altitude is 16,000 feet and its non-operating altitude is 40,000 feet.
