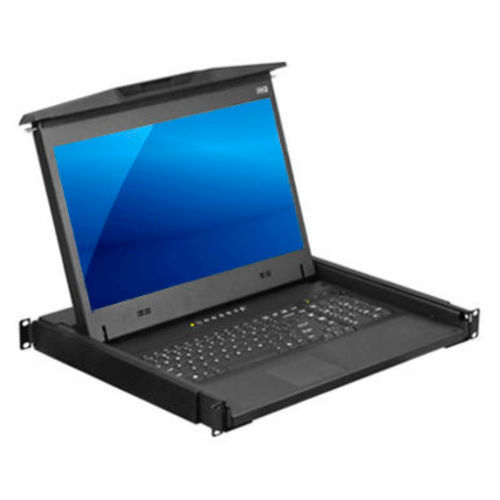

Console rack drawer KD82174

keyboardLCD monitor1U

The KD82174 is a 17.3" 4K ultra-short-depth rackmount LCD console drawer supporting 3840 x 2160 native resolution, 16.7 million colors, DP 1.2 video input, and 100/240 VAC power input in a 1U high ultra-short depth drawer design of only 400mm in depth. The rack console features a 104-key keyboard with a touchpad, built-in dual stereo speakers, and a 2-point lock. The KD82174 is available as a stand-alone console or with an optional 8-port 4K HDMI KVM switch. The KVM mounts into the rear of the 1U chassis and allows users to control up to eight servers from one keyboard, mouse, and monitor setup. Construction Heavy-duty steel LCD panel Size: 17.3 inch Max Resolution: 3840 x 2160@60Hz Brightness (cd/m²): 400 Contrast Ratio (typ.) : 1000:1 Colors: 16.7 M, 8-bit Viewing Angle (H/V): 178° x 178° Response Time (ms): 16 Dot Pitch (mm): 0.0995 Display Area (mm): 382.12H x 214.94V Surface Treatment: Anti-glare Surface Hardness: 3H Backlight: LED MTBF (hrs): 15,000 Keyboard & Pointing Device 104-key keyboard with 2-button touchpad Option for keyboard with trackball or SUN keys Touch Screen (Option) Resistive 1-pt touch screen - USB port Projected Capacitive 10-pt touch screen - USB port Video Input Display Port 1.2 video input Option for HDMI 2.0 or 3G-SDI input Integrated 8-Port 4K KVM Switch (Option) KVM Port: 8 Connector: HDMI 2.0 + USB-B ( Video + KB / MS ) Resolution: 16 : 9 - max. 3840 x 2160@60Hz / 16 : 10 - max. 1920 x 1200@60Hz / 4 : 3 - max. 1600 x 1200@60Hz Local Console: 1 x local console
