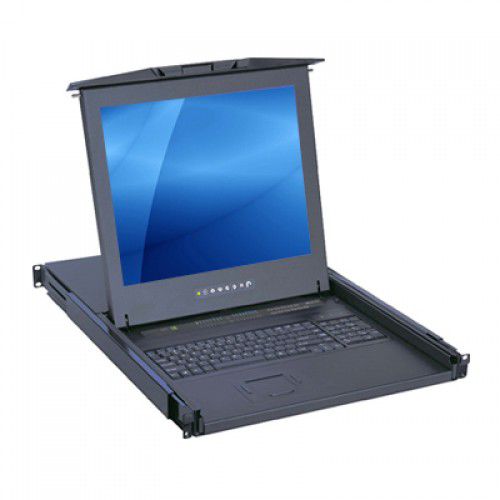

Console rack drawer KDS6190

with built-in KVM switchkeyboardLCD monitor

The KDS6190 is a 19" rack LCD console drawer supporting 1152 x 900 SUN Micro resolution, VGA + DVI-D video input, 104-key keyboard with touchpad and SUN keys, and a 100/240VAC power input. The rack drawer features a short depth design of 500mm with a one-man installation design that allows you to easily mount the console into a rack cabinet or server racks. Material Heavy-duty steel LCD Panel Size: 19 inch Resolution: 1152 x 900 (Direct) / 1280 x 1024 (Native) Brightness (cd/m²): 250 Contrast Ratio (typ.): 1000:1 Response Time (ms): 5 Display Area (mm): 376.32H x 270.33V Viewing Angle (H/V): 170° x 160° Backlight: LED Colors: 16.7M MTBF (hrs): 30,000 Keyboard & Pointing Device 104-key keyboard with 2-button touchpad - USB interface Video Input VGA + DVI-D input Cable 1 x 6ft DVI-D console cable included Option for 1 x 6ft VGA console cable Mounting Distance 20.1 ~ 29.1 inch (510 ~ 740 mm) Power Supply Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 22W, Standby 2W Option for 12V / 24V / 48V / 125V DC power input Color Black Weight 27.9 lb / 12.7 kg Dimension 17.4"(W) x 19.7"(D) x 1.73"(H) *If DC power option is selected, the depth will be extended from 19.7" to 22.4" Environmental Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Humidity: 5~90%, non-condensing Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration Compliance CE, FCC, RoHS, TAA Compliant
