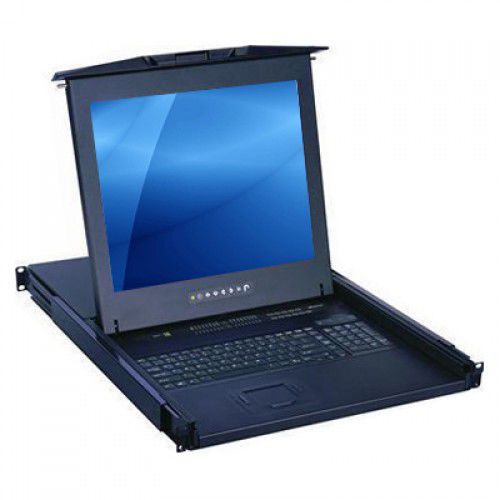

Console rack drawer KDS61716

with built-in KVM switchkeyboardLCD monitor

Rack console supporting 1280 x 1024 and 1152 x 900 resolution comes with a 16 port KVM switch, 104-key keyboard with Sun function keys and 10-key keyboard, 3-button touchpad, and a 1U high 22.84 inch depth rackmount drawer. Option for combo free KVM switch and DC power input. PRODUCT DESCRIPTION KDS61716 is a 17-inch keyboard monitor drawer with a 1280 x 1024 LCD monitor and 104-key keyboard with built-in Sun keys. The heavy-duty steel rack console houses a shock and vibration resistance 1U compact design at 25.6” depth. The shock resistance endures at 10G acceleration (11ms duration) and vibration resistance endures at 5~500Hz 1G RMS random vibration. The operating temperature is from 0° to 50°C. The dimension is 17.4"(W) x 22.84”(D) x 1.73"(H) and at 33 lbs. The drawer design is a high load-rating slide rail with angle bracket extension up to 32” depth with optional extension bracket to 36” depth. The Sun-compatible keyboard is integrated with a 3-button touchpad and an option for trackball. It has 104 keys with built-in Sun keys and a 10-keys keypad. The LCD panel is 17” with a maximum resolution of 1280 x 1024 and Sun native resolution of 1152x900. It is with 300 nits brightness, 1000:1 contrast ratio, 1.3ms response time, four CCFTs backlight, 16.7 million colors, and 50,000 hours of mean time between failure. KD61716 supports 16 ports USB KVM switch with proprietary DB-15 KVM connector, cascades 8 levels and up to 128 servers, resolution at 1600x1200, and supports hot-pluggable cable and built-in KVM switch buttons. It is multi-platform with mix PCs, SUNs, PCs, IBMs, HPs, Compaq, and DELL. It supports Windows Vista/ 2003/ XP/ 2000, Linux, Netware, and Unix.
