Console rack drawer KD80274

keyboardLCD monitor1U

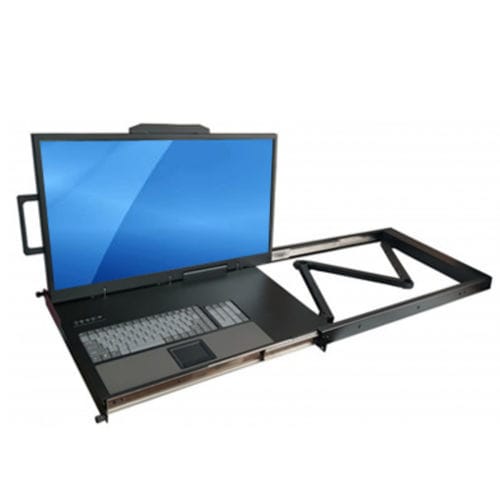

The KD80274 is a 27" rack LCD console drawer with 3840 x 2160 4K UHD resolution, VGA + DVI + HDMI + DP input, keyboard with touchpad, and a 1U high 23.4" depth rackmount drawer with slide access design. The rack console is designed with heavy-duty steel housing for industrial applications and data centers. KD80274 is a 27 inch 4K UHD rackmount console drawer. The LCD supports 3840 x 2160 display resolution, 400-nit brightness, 1000:1 contrast ratio, 1.07 billion colors, and an LED blacklight display. The active area is 596.16(H) x 335.34(V) mm and the pixel pitch is 155.25(H) x 155.25(V) mm. The rack console is constructed with a rugged steel enclosure, which makes it well suited for industrial applications. KD80174 comes with a keyboard with touchpad pointing device and a pull-out drawer that allows users to easily access the unit. The video input for the console includes VGA + DVI-D + HDMI + DP video input. In addition, the console features a front built-in OSD (on-screen display) with 5-key control buttons that adjusts the contrast, color, position, auto-adjustment, and factory settings. Option for 2 x 2W speakers is available. The rear I/O includes 1 x VGA (up to 1920 x 1080 @ 60Hz) , 1 x DVI-D (up to 3840x2160@ 60Hz), 1 x HDMI (up to 1920 x 1080 @ 60Hz), and 1 x DC power input. The power supply consists of a 12V DC power input with external AC to DC power adapter. KD80174 can operate at temperatures ranging from from 0°C to 50°C (32°F to 122°F), and it can be stored at temperatures ranging from -20°C to 70°C (-4°F to 158°F).
