19" rack drawer KDW8190

consolekeyboard1U

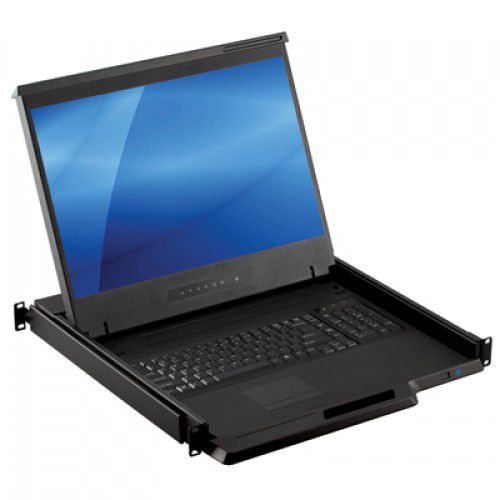

The KDW8190 is a 19" rack LCD console drawer supporting 1440 x 800 native resolution, VGA + HDMI (no speaker) video input, and a 104-key keyboard with a touchpad in a 1U high 18.1" short-depth rack drawer. The console features a modeled front handle for easy access and a front LED touch OSD, providing users with a convenient way to control device settings. Material Heavy-duty steel LCD monitor Size: 19 inch Native Resolution: 1440 x 900 Brightness (cd/m²): 250 Contrast Ratio (typ): 1000:1 Colors: 16.7 M Viewing Angle (H/V): 170° x 160° Response Time (ms): 5 Dot Pitch (mm): 0.2835 Display Area (mm): 408.24H x 255.15V Surface Treatment: Anti-glare Surface Hardness: 3H Backlight: LED MTBF (hrs): 30,000 Keyboard & Touchpad 104-key keyboard with 2-button touchpad - USB port Option for keyboard with trackball or SUN keys Video input VGA + HDMI (no speaker) video input Option HDMI, DVI, Audio, BNC, front USB hub, or 3G-SDI input Mounting Distance 18.5 ~ 27.6 inch (470 ~ 700 mm) Cable 1 x 6ft VGA USB console cable included Power supply Input: Auto-sensing 100 to 240VAC, 50/60Hz Power Consumption: Max. 20 Watt, Standby 2 Watt Option for 12V / 24V / 48V / 125V DC power input Color Black (RAL 9005) Weight 25.3 lb / 11.5 kg Dimension 17.4"(W) x 18.1"(D) x 1.73"(H) * All dimensions stated are subject to change if options are selected / integrated to base model
