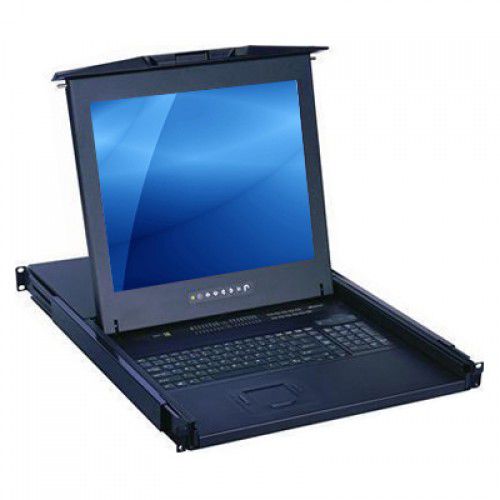

Console rack drawer KDS6198

with built-in KVM switchkeyboardLCD monitor

Rack KVM console supporting 1280 x 1024 and 1152 x 900 display resolution with an 8 port KVM switch and Sun function keyboard designed for industrial IPC applications. KDS6198 of 19 inch LCD keyboard monitor drawer supporting SUN native resolution and built-in SUN function keys. The 1U compact design is of 25.6” depth. The SUN-compatible keyboard integrated with 3-button touchpad with an option for trackball. There are 101 keys with built-in Sun keys and 10-keys keypad. The LCD displays a resolution of 1280x1024 with sun native resolution of 1152x900. The brightness is 300 nit and contrast ratio is 1000:1. The backlight consists of 4 CCFTs. The mean time between failures is 50,000 hours with 16.7 million colors. The video input is analog RGB, 0.7Vp-p. The material construction is of heavy-duty steel. The drawer design is of high load-rating slide rail with angle bracket extension up to 32” depth with optional extension bracket to 36” depth. The dimension is 17.4"(W) x 24.5”(D) x 1.73"(H) and at 33 lbs. The operating temperature is from 0°C~ 50°C. There are 8 ports USB KVM switch with proprietary DB-15 KVM connector, cascades 8 levels with up to 128 servers. The resolution is 1600 x 1200. It supports hot-pluggable cable and built-in KVM switch buttons. The platforms supported are mixed PCs, SUNs, PCs, IBMs, Hps, Compaq, and DELL. It supports Windows Vista/2003/XP/2000, Linux, Netware, and Unix. There are 8 x 6’ 4-in-1 KVM cables for VGA/ keyboard/mouse with options for 10’ or 15’ cable. On the KVM side, there is 1 x D-sub 15 pin proprietary KVM connector and on the server-side, there is 1 x D-sub 15 pin VGA. The power supply is auto-sensing 100 to 240 VAC, 50/60Hz.
