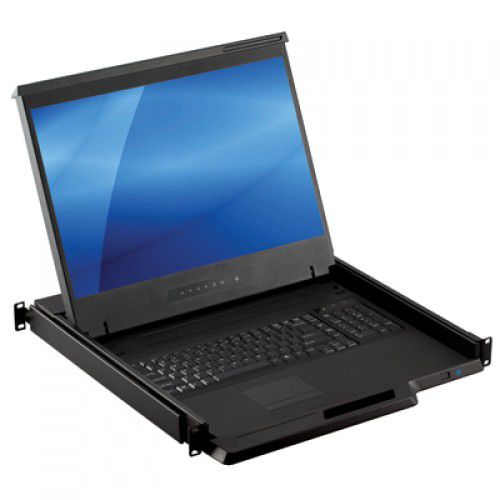

19" rack drawer MKD6219U

consolewith built-in KVM switchkeyboard

The MKD6219U is a 19" widescreen rack LCD console drawer with an integrated 104-key keyboard with touchpad and an 8-port VGA USB Hub KVM switch. There are two USB peripheral hub ports that let you share USB 2.0 peripheral devices, storage devices, printers, and any other devices, among computers connected to the KVM console. The display supports 1440 x 900 resolution, 250-nits brightness, 1000:1 contrast ratio, and 16.7 million colors. The console supports 8 x DB-15 KVM ports, 1 x local console, and 1 x in/out proprietary cascade KVM port. PRODUCT DESCRIPTION The MKD6219U is a 19-inch widescreen rackmount LCD console drawer with an 8 port KVM switch with USB Hub and a 104-key keyboard with a touchpad. The 19-inch panel displays a resolution of 1440 x 900, 250 nits brightness, 1000:1 contrast ratio, and 16.7 million colors. The backlight is LED and the mean time between failures is 30,000 hours. The 104-key keyboard with a 2-button touchpad is combo-free. The MKD6219U supports 8 x KVM ports (1 x VGA, USB, or PS/2 for keyboard & mouse) with the option for a 16 port KVM switch. KVM Switch controls for advanced user profiles and configurable OSD and hotkey combination, multi-lingual on-screen display menu, support 8 characters password protection and has one front USB port for computer system upgrades and shared USB peripherals. The local console supports 1 x VGA port (resolution up to 1600 x 1200) and 2 x USB ports for the keyboard and mouse. There is one remote control with one receiver. The receiver and IP remote control can be added as options.
