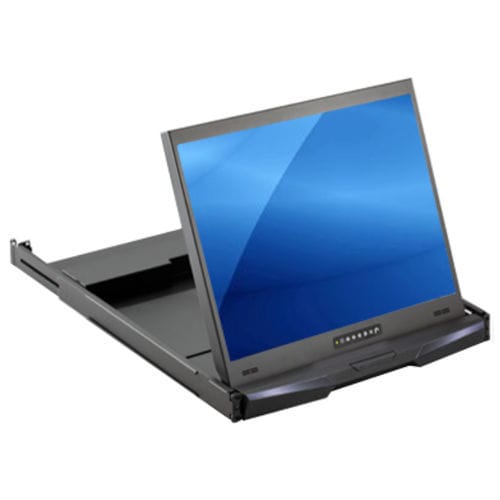

Console rack drawer RP1205

with built-in KVM switchkeyboardLCD monitor

The RP1205 is a 20.1" rackmount LCD monitor drawer supporting 1600 x 1200 native resolution, VGA + HDMI video input, and a 100/240VAC power input in a 1U high 25.6" (650mm) depth rack drawer. The monitor drawer features an LED touch on-screen display (OSD), providing users with a convenient way to the device settings. PRODUCT DESCRIPTION The 20.1-inch industrial monitor offered 1600 x 1200 display resolution and VGA with HDMI connector on the back of the rack mount drawer for your rackmount server connection. The OSD (on-screen display control) function lets you adjust the rack mount monitor for the best viewing, All the OSD membrane buttons are located on the front of the monitor for easy access and adjustment. The monitor can be tilted to a 90-degree horizontal angle for better viewing. The auto-shutoff function enables the monitor drawer to go back to its resting position that lows to extend the LCD monitor's life. Option for DVI-D / BNC / Audio / Speaker / SDI input. The low profile 1U high rackmount drawer saves rack cabinet space. The onboard ball-bearing slide rail is mounted on each side of the drawer allows you to pull out the drawer from the 19-inch rack cabinet. The key-locker or thumb locker is installed on the front panel to lock the drawer inside the rack when the monitor is not in use. The industrial monitor comes with a standard 6 foot VGA / DVI cable. Option for 10 feet, 15 feet, and 25 feet cable is available. The monitor drawer offers a 100/240VAC auto-switching power input. The monitor drawer is ready to mount into a standard 19-inch cabinet and the rear mounting bracket can be extended up to 650mm depth rack cabinet.
