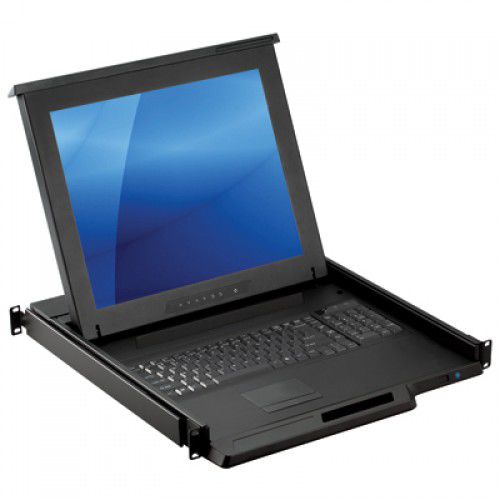

Console rack drawer KDH8190

keyboardLCD monitor1U

Sunlight readable rackmount console drawer with a 19 inch 1280 x 1024 1000-nit high brightness LED backlight LCD panel, VGA video input, 104-key keyboard with 2-button touchpad, and a 1U high 20.5 inch depth rackmount drawer. Option for DVI-D / HDMI / Audio / SDI input, Resistive type touch screen, front USB hub, MAC or SUN keyboard layout, and DC power input. Material Heavy-duty steel LCD Monitor Size: 19 inch Resolution: 1280 x 1024 Brightness (cd/m²): 1000 Contrast Ratio (typ): 1000 : 1 Display Area (mm): 376.32H x 270.33V Viewing Angle (H/V): 170° x 160° Colors: 16.7 M Backlight: LED MTBF (hrs): 50,000 Video input VGA video input Option for VGA + DVI-D + HDMI + Audio or VGA + SDI Keyboard & Pointing Device 104 keyboard with 2-button touchpad Keyboard Layout (Option) Option for MAC or SUN keyboard layout Touch Screen (Option) Option for Resistive type touch screen - USB Drawer design High load-rating slide rail with angle bracket Extension up to 32” depth Option Extension bracket up to 36" depth Cable 1 x 6 feet 4-in-1 proprietary cable for VGA / Keyboard / touch-pad Option for 10 feet or 15 feet KVM cable Color Black (RAL 9005) Power Supply Input: Auto-sensing 100 to 240VAC, 50/60Hz Power Consumption: Max.39W, Standby 2W Option for 12V / 24V / 48V / 125V DC power input Weight 29 lb / 13.2 kg Dimension 17.4"(W) x 20.5"(D) x 1.73"(H) Casing depth will increase if touch screen, video input, or DC power option is selected
