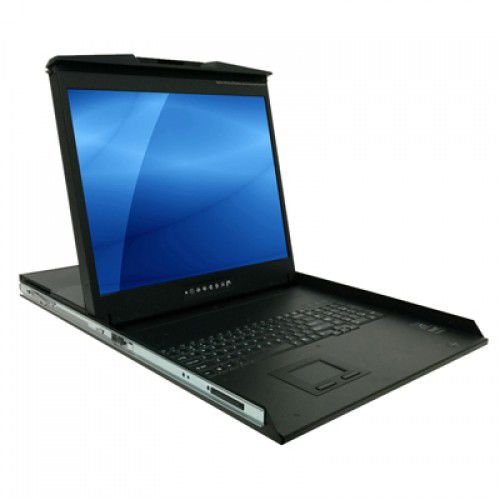

Console rack drawer KD8220

keyboardLCD monitor1U

The KD8220 is a 1U 20.1" rack LCD console drawer supporting 1600 x 1200 native resolution, VGA video input, and a 100/240VAC power input in a 1U high 25.6" depth rack drawer designed for a standard 19" rack mount space. The console features a 2-point lock with an LCD membrane that provides users with a convenient way to control device settings. KD8220 is a 20.1 inch rackmount LCD console drawer with a combo-free 104-key keyboard with touchpad. The 20.1 inch monitor displays a resolution of 1600 x 1200 (UXGA), 300-nit brightness, 800:1 contrast ratio, and 16.7 million colors. The response time is 16ms and the MTBD (mean time between failures) is at 45,000 hours. KD8220 comes with a 104-key keyboard with a full numerical keypad (combo free) and a touchpad pointing device. In addition, KD8220 features a front LCD OSD membrane to provide administrators convenient access to control the device settings. The On-Screen Display (OSD) controls the brightness, contrast, phase and color, horizontal and vertical position, auto-tune, recall, and language. KD8220 supports one VGA video input and two USB ports for the keyboard and mouse. Options are available for DVI-D, HDMI, or SDI input. Built of heavy-duty steel, the 1U rackmount console has a plastic molded front handle with a 2-point lock for protection. The compact dimension of 17.4"(W) x 25.6"(D) x 1.73”(H) allows the console to mount into a 1U space for controlling data centers. The operating temperature of the console withstands temperatures from 32°F to 122°F (0°C to 50°C) and humidity levels at 20~90%, non-condensing. The connectors include D-sub 15-pin proprietary KVM port and proprietary 4-in-1 KVM cable.
