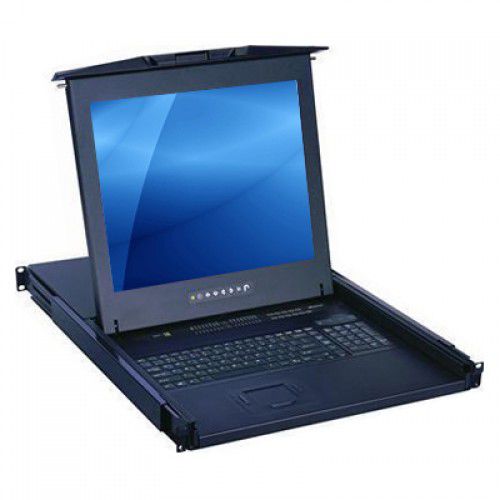

Console rack drawer KDS61916

with built-in KVM switchkeyboardLCD monitor

Rack console comes with a 19 inch 1280 x 1024 / 1152 x 900 sun native industrial monitor, 104-key keyboard with SUN function keys, 16 port DB-15 USB KVM switch, and a 1U high 24.5 inch depth rackmount drawer. Material Heavy-duty steel Keyboard and Touchpad SUN-compatible keyboard integrated with 3-button touchpad Option for keyboard with trackball LCD Panel Size: 19 inch Resolution: 1280 x 1024 Sun Resolution: 1152 x 900 Auto-switch between SUN and PC display resolution Brightness (cd/m²): 300 Contrast Ratio (typ.): 1000 : 1 Response Time: Tr=1.3ms Display Area: 338 x 270mm Viewing Angle: 160° Horizontal and 160° Vertical Backlight: 4 CCFTs Colors: 16.7M colors MTBF: 50,000 hours Video Input Analog RGB, 0.7Vp-p Plug & Play DDC EDID 1.3 Resolution 720 x 400, 70Hz 640 x 480, 60/ 70/ 72/ 75 Hz 800 x 600, 60/ 70/ 72/ 75Hz 1024 x 768, 60/ 70/ 75 Hz 1152 x 864, 60/ 70/ 75Hz 1280 x 720, 60/ 75Hz 1280 x 1024, 60/ 70/ 75 Hz 1152 x 900, 66/ 76Hz KVM Switch 16 port USB KVM switch Connector type: proprietary DB-15 KVM connector Cascades level: 8 levels, up to 128 servers Resolution: 1,600 x 1,200 Support hot plug cable and built-in KVM switch buttons Multi-platform: Mix PCs, Suns, PCs, IBMs, HPs, Compaq & DELL O/S support: Windows Vista/ 2003/ XP/ 2000, Linux, Netware, Unix KVM Management Multilingual OSD: English, France, German, Spanish, Italian, Russian, Simplified Chinese, Japanese Hot key combination: Scroll-lock, Cap-lock, Num Lock, Alt, Ctrl & Win Security: Password enable & disable, up to 8 users profile for port access
