Console rack drawer KDX81712

keyboardLCD monitor1U

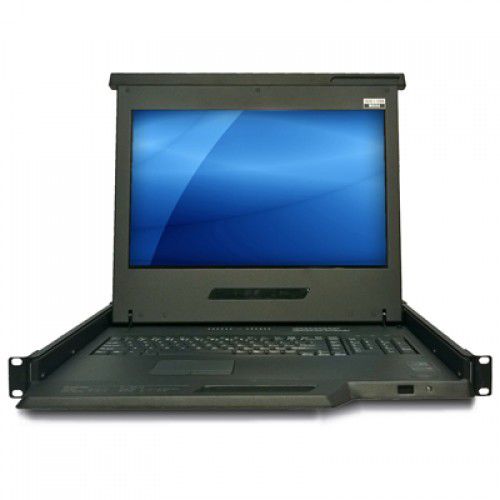

Rackmount LCD console drawer with 16.2 inch 1920 x 1200 industrial LED backlight LCD monitor, 104-key keyboard with touchpad, 12-port DVI-D KVM switch, and a 1U high 22.8 inch depth rackmount drawer. Option for DVI-D + USB KVM cables and MAC or SUN keyboard layout. KDX81712 presents a 16.2 inch monitor keyboard drawer with a 1920 x 1200 WUXGA industrial LCD, 104-key keyboard with touchpad, DVI-D video input, 12-port DVI-D KVM switch, and 100/240VAC power input. The 16.2 inch displays a resolution of 1920 x 1200 WUXGA, 210-nit brightness, 800:1 contrast ratio, and 16.7 million colors in 8-bits. The backlight is of LED with a mean time between failures at 20,000 hours. The signal input is DVI-D. The 12 x DVI KVM port includes for 1x DVI, 1x USB 3.0 port for keyboard & mouse. The KVM switch controls advanced user-profiles and configurable on-screen display and hotkey combination, multi-lingual on-screen display menu, and supports eight characters password protection. Option for 6ft or 15ft DVI-D + USB KVM cables. Produced with heavy-duty steel, the rackmount drawer is of 1U high and 22.9-inch depth. It contains a 1920 x 1200 WUXGA industrial LED LCD monitor and 104-keys keyboard with a 2-button touchpad, combo free, and the option for a trackball. The dimension measures at 17.4"(W) x 22.8"(D) x 1.73"(H) and 24 lbs. The operational temperature can withstand from 0°C to 55°C. The anti-shock resists at 10G acceleration (11ms duration). The anti-vibration resists at 10~300Hz 0.5G RMS random vibration. The relative humidity is tolerable from 5~90%, non-condensing. The power supply is an Auto-sensing 100 to 240VAC, 50 / 60Hz power input.
