Console rack drawer KD9176

keyboardLCD monitor1U

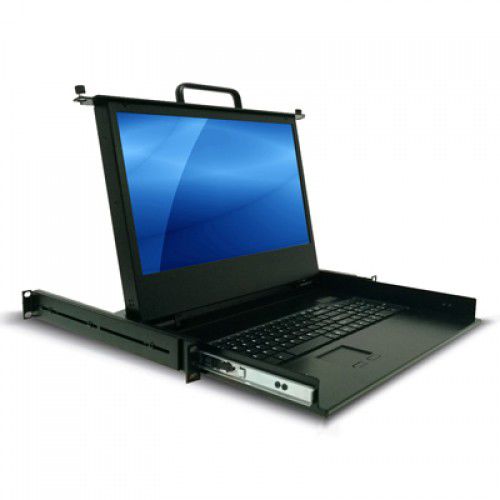

The KD9176 is a 17.3" Full HD 1U rackmount keyboard console with VGA + DVI input. The console combines a keyboard, a touchpad, and an LCD monitor into a slim and rugged aluminum housing for durability. The display is hinged so it can be titled to the most comfortable viewing position. The LCD folds down on top of the keyboard when recessed into the drawer. The KD9176 is a heavy-duty steel rack console containing a widescreen 17.3-inch 16:9 LED monitor keyboard drawer with thumb-lock screws securing. This 1U high and 14.5-inch depth rack mount drawer features a 1920 x 1080 LED LCD monitor with 104-keys slim-type keyboard with a touchpad. The full HD displays luminous colors and the LED backlight warrants bright and clear images, energy efficiency, and is long-lasting. The on-screen display menu is easily adjusted in the front with five menu buttons for brightness, contrast phase and color, H-position, V-position, auto-tune, recall, and language. Fitting into compact spaces is no obstacle for KD9176 as its dimension of 1.7 inches in height, 19 inches in width, and 14.5 inches in diameter can easily be mounted on slim surfaces. The control terminal is built of heavy-duty steel ensuring it to be strong and durable, protecting from any harsh operating environment. Its drawer design ability allows a high load-rating slide rail with angle bracket to effortlessly and efficiently slide the keyboard drawer in and out. It comes with an extension of up to 24-inch depth, tolerating extra length use if needed. The drawer also has two thumb-lock screws for system security lock safeguarding the unit during motion.
