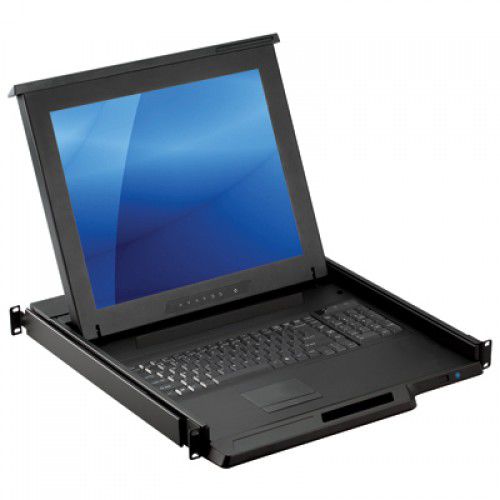

Console rack drawer KDH8170

keyboardLCD monitor1U

Sunlight readable rackmount console drawer with a 17 inch 1280 x 1000-nit high brightness LED backlight LCD panel, VGA video input, 104-key keyboard with touchpad, and a 1U high 18.9 inch depth rackmount drawer. Option for DVI-D / HDMI / Audio / SDI input, Resistive type touch screen, front USB hub, MAC or SUN keyboard layout, and DC power input. PRODUCT DESCRIPTION KDH8170 of 17 inch LCD keyboard monitor drawer supporting 1000-nit high brightness. The 1U compact design is of 17.3” depth. The LCD displays a resolution of 1280x1024 and the contrast ratio is 1000:1. The backlight consists of an LED. The mean time between failures is 50,000 hours with 16.7 million colors. The 104 keys keyboard is integrated with a 3-button touchpad with an option for trackball. The video input supports VGA input with optional VGA + DVI-D + HDMI + Audio or VGA + SDI input.The material construction is of heavy-duty steel. The drawer design is of high load-rating slide rail with angle bracket extension up to 32” depth with optional extension bracket to 36” depth. The dimension is 17.4"(W) x 17.3"(D) x 1.73"(H) and if with the optional touch screen it will be 17.4"(W) x 25.6"(D) x 2.63"(H). The weight is 26 lbs. The operating temperature is from 0°C~ 50°C. The shock vibration resists at 5~500Hz 1G RMS at random vibration and shock vibration at 10G acceleration (11ms duration). The power supply is auto-sensing 100 to 240 VAC, 50/60Hz. Option 12V / 24V / 48V / 125V DC power input. The cable includes 1 x 6 feet 4-in-1 proprietary cable for VGA /keyboard/touch-pad with optional for 10 feet or 15 feet KVM cable
