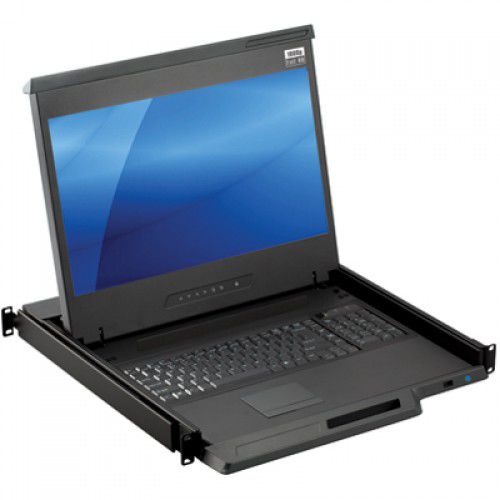

Console rack drawer KDF81712

keyboardLCD monitor1U

Rackmount LCD console drawer with a 17.3 inch 1920 x 1080 Full HD LED backlight LCD monitor, 104-key keyboard with 2-button touchpad, and a 1U high 22.8 inch depth rackmount drawer. The rack console is integrated with a 12-port DVI-D KVM switch with 1 x local console. Option for DVI-D + USB KVM cables. Material Heavy-duty steel LCD Panel Size: 17.3" Native Resolution: 1920 x 1080 Brightness (cd/m²): 300 Contrast Ratio (typ.): 1000: 1 Colors: 16.7 M, 8-bit Viewing Angle (H/V): 178° x 178° Response Time (ms): 25 Dot Pitch (mm): 0.1989 Display Area (mm): 381.888H x 214.812V Surface Treatment: Anti-glare, Hard-coating Surface Hardness: 3H Backlight: LED MTBF (hrs): 15,000 Keyboard & pointing device 104-key keyboard with 2-button touchpad - USB KVM Port Number of Ports: 12 x DVI KVM ports Connector: DVI-D connector + USB 3.0 connector (for keyboard, mouse & audio) KVM Usage Advanced user profiles and configurable on- screen display (OSD) & hotkey combination Multilingual on-screen display menu Supports eight character password protection Front Panel Control Power on/off switch OSD (on screen display) 1 x bank number LED indicator 12 x KVM ports LED indicators for on-line / Active / Remote 10 x KVM channel membrane buttons 1 x bank membrane button KVM Cables (Option) Option for 6ft or 15ft DVI-D + USB KVM cables Power supply Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 45W, Standby 34W Option for 12V / 24V / 48V / 125V DC power input
