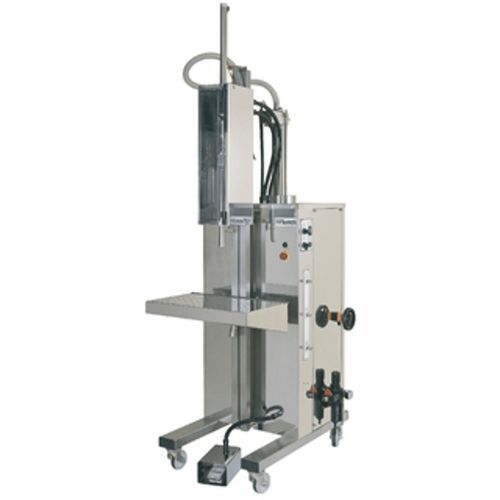

Semi-automatic filling machine

bottlecontainerjerry can

Overview
Semi-automatic volumetric filling machine designed for precise, repeatable dosing of liquids from 250 ml to 5 L, with multi-shot capability up to 30 L. Suitable for small to medium industrial production lines and standalone filling stations.

Product details

• Flexible fill range
  Accurate single-shot filling 250 ml–5 L; multi-shot mode extends capacity to 30 L.
• Production speed
  Typical throughput up to 1,200 bottles/hour depending on product and configuration.
• High accuracy
  Filling precision up to ±0.2% to minimise waste and ensure batch consistency.
• Nozzle versatility
  Adjustable nozzles and speed control for foaming and non-foaming liquids.
• Viscosity compatibility
  Handles low to high viscosity products including gels, creams, oils, syrups and resins.
• Hygienic construction
  Product-contact parts in 316L stainless steel and PTFE for safe cleaning.
• Configuration options
  1–2 filling heads, single-acting product cylinders, optional remote nozzle for palletised or large containers.
• ATEX-ready options
  Available configurations for flammable products up to Zone 1 IIB 2G T4.
• Quick changeovers
  Designed to reduce downtime between product or container changes.

Service & Maintenance

• Hygienic parts
  316L and PTFE contact surfaces for simplified cleaning procedures.
• Maintenance
  Recommended daily flush-through and routine visual inspections; accessible components for fast servicing.

How it works
The volumetric system dispenses a fixed volume via precision product cylinders. Each stroke delivers the programmed volume, ensuring repeatable fills, minimal product waste and consistent performance across batches and viscosities.

Applications & Container types
Suitable for bottles, jerrycans, tubs, large containers and palletised vessels (remote nozzle). Single-shot mode covers bottles and small containers from 250 ml to 5 L; multi-shot expands capacity up to 30 L for larger containers.

Technical specifications

• Typical filling accuracy: ±0.2%
• Fill volume range: 250 ml – 5 L (up to 30 L with multi-shot)
• Typical product output: Up to 10/min per head
• Reference throughput: Up to 1,200 bottles/hour
• Machine dimensions (approx): H 2.3 m × W 1.0 m × L 1.1 m
• Machine weight (approx): 250 kg
• Compressed air working pressure: 6 bar (0.6 MPa)
• Construction: 316L stainless steel with PTFE contact parts
• Configuration: 1–2 filling heads; single-acting cylinders; optional remote nozzle for palletised containers
• ATEX zone qualification: Possible up to Zone 1 IIB 2G T4
