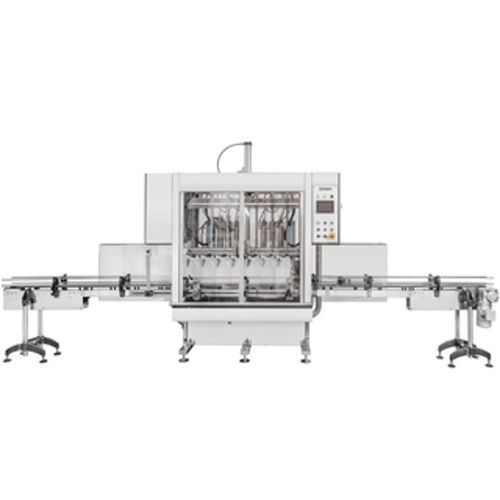

Automatic filling machine

drumbottlejerry can

Overview
The Masterfil Automatic Volumetric Filler is a volumetric liquid filling machine engineered for fast, accurate and repeatable filling of containers from 50 mL to 25 L, suitable for bottles, jerrycans and drums in industrial production environments.

Key features

• Wide fill range — Accurate filling from 50 mL to 25 L for a variety of container formats.
• High-speed output — Configuration-dependent throughput with reported rates up to 4,800–5,400 containers/hour.
• Exceptional accuracy — Typical tolerances ±0.2% (standard) and ±0.15% (SERVO variants).
• Scalable design — Configurable from 2 to 12 filling heads, expandable to meet production growth.
• Versatile filling — Programmable nozzles for dive, rise, neck and above-neck filling across viscosities.
• Operator-friendly — Store and recall multiple fill profiles for quick changeovers.
• Waste-reducing sensing — 'No container, no fill' detection to prevent spills.
• Hygienic construction — Contact parts in 316L stainless steel and PTFE for easy cleaning.
• ATEX options — Versions available for flammable products up to Zone 1 IIB 2G T4.

Uses / Applications
The Masterfil is designed for fast, accurate and repeatable filling of liquids into bottles, jerrycans, containers and drums. Typical sectors: industrial, pharmaceutical, cosmetic, chemical, food and household products.

Types of liquids handled

• Water-like liquids
• Oils
• Detergents
• Creams and gels
• Chemicals and solvents
• Food-grade products
• Specialist industrial formulations
• Lubricants

Performance & Outputs

• Typical filling accuracy: ±0.15% to ±0.2% depending on configuration.
• Fill volume range: 50 mL to 25 L.
• Typical output per head: up to 450 containers/hour (aggregate depends on head count).
• Reported maximum throughputs: marketing references up to 4,800 containers/hour; technical configurations up to 5,400 containers/hour depending on container size, fill volume and number of heads.

Construction & Compliance

• Contact parts: 316L stainless steel and PTFE for hygienic operation and easy cleaning.
• Frame options: 1.2 m, 1.6 m or 2.4 m depending on configuration.
• Machine height: typically 2.3 m.
• Electrical supply: 400 VAC, 3PH + N + Earth, 50/60 Hz.
• Compressed air working pressure: 6 bar (0.6 MPa).
• ATEX: available options up to Zone 1 IIB 2G T4.

Service & Maintenance

• Hygienic parts: 316L stainless steel and PTFE contact surfaces.
• Maintenance guidance: daily flush-through and visual inspections recommended.

Technical specifications

• Typical filling accuracy: ±0.15% to ±0.2%.
• Fill volume range: 50 mL – 25 L.
• Typical product output: up to 450/hour per head.
• Machine height: 2.3 m.
• Frame options: 1.2 / 1.6 / 2.4 m.
• Machine length: dependent on model.
• Standard electrical supply: 400 VAC, 3PH + N + Earth, 50/60 Hz.
• Compressed air: 6 bar (0.6 MPa).
• ATEX zone qualification: possible up to Zone 1 IIB 2G T4.
