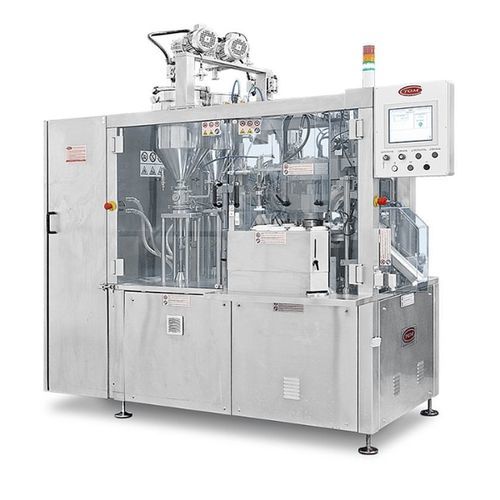

Automatic filling machine TGM P300

for tubesfor pasty productsfor cosmetic products

Overview
The TGM P300 is a high-capacity automatic tube filler engineered for 2–3 colour co-extruded and concentric tube products, delivering up to 6,000 tubes per hour and designed for continuous large-batch production.

Product details

• Advanced multi-colour filling capability
  • Fills 2–3 colour co-extruded tubes.
  • Supports 2–3 colour deep-stripe designs.
  • Produces 2 concentric colour formulations with precise alignment.
• High-output automatic production
  • Up to 6,000 tubes per hour.
  • Designed for continuous, large-batch manufacturing.
• Large ergonomic tube feeder
  • High-capacity loader reduces operator intervention.
  • Improves workflow efficiency and production consistency.
• Compact yet versatile design
  • Space-efficient footprint for high-output equipment.
  • Suitable for integration into existing production lines.
• Consistent, repeatable filling accuracy
  • Maintains uniform colour distribution and stripe definition.
  • Ensures consistent product appearance over long production runs.

Applications
The P300 is intended for advanced cosmetic, personal care and pharmaceutical tube applications where colour accuracy and consistency are critical.

Technical specifications
Tube Size | Metal | Plastic
Diameter | 10 - 42 mm | 10 - 50 mm
Length | 50 - 240 mm | 50 - 240 mm

FAQ highlights

• Used for high-precision filling of multi-colour tube products including 2–3 colour co-extruded, deep-stripe and concentric formulations.
• Supported product types: 2–3 colour co-extruded, 2–3 colour deep-stripe, 2 concentric colour products.
• Production speed: up to 6,000 tubes per hour.
• Colour alignment: engineered for precise colour control ensuring consistent stripe definition and accurate concentric alignment over long runs.

Characteristics / technical specifications

• Model: TGM P300
• Manufacturer/Brand: Adelphi Manufacturing
• Output: up to 6,000 tubes per hour
• Supported formats: 2–3 colour co-extruded, 2–3 colour deep-stripe, 2 concentric colour products
• Tube diameter range (metal): 10 - 42 mm
• Tube diameter range (plastic): 10 - 50 mm
• Tube length range (metal and plastic): 50 - 240 mm
• Large ergonomic tube feeder (high-capacity loader)
• Compact footprint suitable for integration into existing lines
• Consistent, repeatable filling accuracy and stripe definition
