Horizontal cartoning machine BOX90

for the cosmetics industryfor the pharmaceutical industryfor blister

Product overview

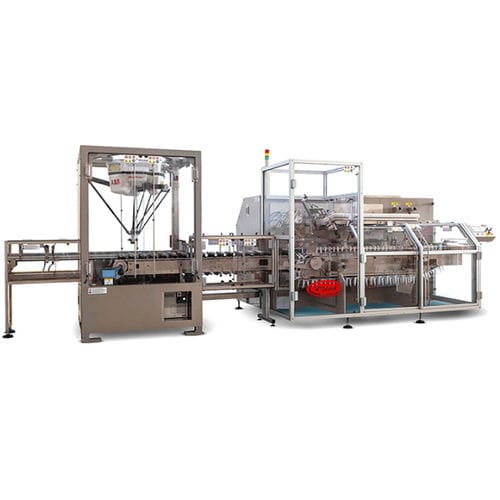

The TGM BOX90 is a horizontal intermittent-motion cartoning machine designed for medium to high volume production. It performs carton erection, accurate product insertion and reliable closing while providing flexible configuration options for a wide range of product formats.

Key features

• Intermittent motion cartoning system
  • Precise and controlled carton handling for delicate placement.
• High production performance
  • Capacity up to 4,800 pieces per hour, suitable for medium to high throughput lines.
• Exceptional versatility
  • Configurable loading systems to handle tubes, bottles, jars, blisters, lipsticks, pencils and similar items.
• Modular machine configuration
  • Accessory modules and tooling options reduce changeover time and enable format adaptation.
• Consistent carton quality
  • Reliable erection, insertion and closing that ensure repeatable results over long runs.

Applications and suitability

• Designed for cosmetics, pharmaceutical and personal care production lines with medium to high output requirements.
• Suitable for fragile or high-value products requiring gentle, controlled handling.

Product operation summary
The BOX90 provides horizontal carton erection, precise product insertion and dependable closing operations. Configurable loading stations and modular accessories enable quick adaptation to different shapes and pack formats while minimising downtime during changeovers.

Technical specifications

• Model: TGM BOX90
• Machine type: Horizontal, intermittent-motion cartoning machine
• Maximum output: Up to 4,800 pieces per hour
• Typical applications: Medium to high throughput lines in cosmetics, pharmaceuticals and personal care
• Handled product types: Tubes, bottles, jars, blisters, lipsticks, pencils and similar items
• Loading systems: Configurable loading systems for varied product ranges
• Machine design: Modular configuration with accessory options for format adaptation
• Key benefits: Precise handling, consistent carton quality, reduced changeover time
