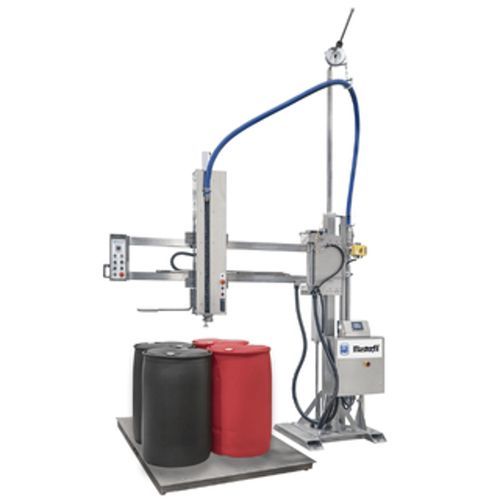

Semi-automatic filling machine

drumIBCfor high-viscosity liquids

Product overview
Industrial drum and IBC filling system with integrated weigh-scale verification, adjustable swing boom and high-accuracy filling from 20 L to 1,000 L; typical output around 200 L/min depending on product.

Key features

• High-Volume Filling
  Handles fill volumes from 20 L up to 1,000 L with typical outputs near 200 L/min (application dependent).
• Precision Weighing
  Filling accuracy up to ±0.2% to minimise overfill and product waste.
• Integrated Weight Verification
  Immediate verification of fill weight on the machine eliminates the need for a separate check weigher.
• Operator-Friendly Design
  Height-adjustable swinging boom arm improves operator ergonomics and safe access to containers.
• Fast Changeover
  Piston-free design enables rapid product and container changeovers to reduce production downtime.
• Automation Ready
  Capable of filling two pallets side-by-side; optional gravity or roller conveyors for automated infeed/outfeed.
• Hygienic Materials
  Contact parts in 316L stainless steel and PTFE suitable for demanding industrial environments.
• Versatile Fluid Handling
  Suitable for low- to high-viscosity liquids across multiple process applications.
• Flexible Container Range
  Designed for drums, IBCs and other large containers; can operate as backup for smaller containers.
• ATEX Option
  Configurable for flammable product applications (ATEX available to required zone).

Technical specifications
Specification — Value
Typical Filling Accuracy — ±0.2%
Fill Volume Range — 20 - 1000 L
Typical Product Output — Application dependent, typically ~200 L/min
Machine Height — 4057 mm (dependent on configuration)
Machine Width — 820 mm (dependent on configuration)
Machine Length — 2861 mm (dependent on configuration)
Standard Electrical Supply — 240V / 400VAC, 3PH + N + Earth, 50/60 Hz
Compressed Air Working Pressure — 6 bar (0.6 MPa)
ATEX Zone Qualification — Possible up to Zone 1 IIB 2G T4 (optional)

Maintenance

• Recommended daily rinse and routine visual inspections; follow site-specific cleaning and verification procedures.
