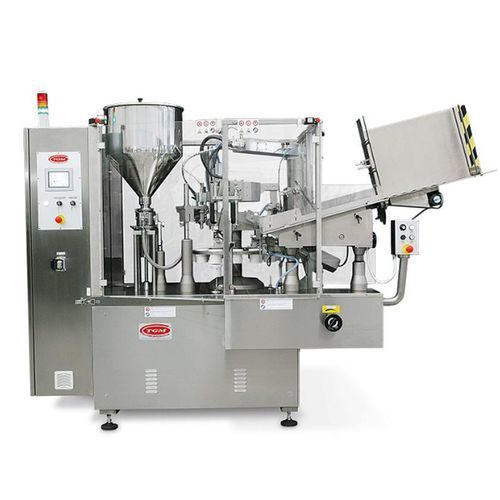

Electrically-operated filling and sealing machine TGM S420

fully-automaticfor tubesfor pasty products

Overview
High-speed automatic tube filler and sealer engineered for high-volume pharmaceutical, cosmetic and food production. Hygienic, GMP-oriented construction with precision dosing, integrated tube orientation and adaptable sealing methods for metal, polyethylene (PE) and laminate tubes.

Key features

• High Output Performance
  • Up to 4,200 tubes/hour for metal tubes
  • Up to 3,200 tubes/hour for plastic & laminate tubes
• Automatic Tube Handling & SealingFully automated feeding, positioning, filling, sealing and discharge for repeatable production with minimal operator interaction.
• Versatile Tube CompatibilityHandles metal, PE and laminate tubes across a wide size range; PE/laminate capacity up to 60 mm diameter available as an option.
• Advanced Sealing Solutions
  • Metal tubes: fold & roll crimping
  • PE/laminate tubes: hot-air or hot-jaw sealing
• Hygienic, Pharmaceutical-Grade DesignCrevice-free construction and oil-free mechanics to support GMP workflows, reduce contamination risk and simplify cleaning.
• Tube Orientation SystemBuilt-in print-orientation using bottom-driven tube-holder rotation to ensure consistent branding alignment.
• Optional Process Enhancements
  • Tube cleaning system to remove particulates before filling
  • Nitrogen or bisulphite insertion before and/or after filling to enhance product stability
• Safer, Cleaner Work AreaDrive mechanisms located beneath the working surface to improve operator safety and maintain a hygienic production zone.
• Precision Dosing SystemAccurate fill control to minimise product giveaway and maintain batch consistency.

Applications

• Pharmaceutical creams, gels and ointments
• Cosmetic and skincare products (balms, serums, lotions)
• Food and nutraceutical pastes
• Veterinary formulations
• Industrial and chemical pastes

Technical specifications (table)
Typical Power Consumption (metal) — 2 kW
Typical Power Consumption (plastic) — 5.5 kW
Water Consumption — 1–2 l/min
Air (metal) — 150 l/min
Air (plastic) — 300 l/min
Metal Tube Diameters — 10–42 mm
Plastic Tube Diameters — 10–50 mm (60 mm optional)
Tube Length — 50–240 mm

Characteristics / Technical specifications

• Maximum speed: up to 4,200 tubes/hour (metal); up to 3,200 tubes/hour (plastic & laminate)
• Power consumption: 2 kW (metal typical), 5.5 kW (plastic typical)
• Water consumption: 1–2 l/min
• Air: 150 l/min (metal), 300 l/min (plastic)
• Supported metal tube diameters: 10–42 mm
• Supported plastic tube diameters: 10–50 mm (optional 60 mm capability)
• Supported tube lengths: 50–240 mm
• Sealing: fold & roll crimping for metal; hot-air or hot-jaw for PE/laminate
• Hygienic design: crevice-free construction, oil-free mechanics, under-surface drive mechanisms
• Optional extras: tube cleaning, nitrogen/bisulphite insertion
