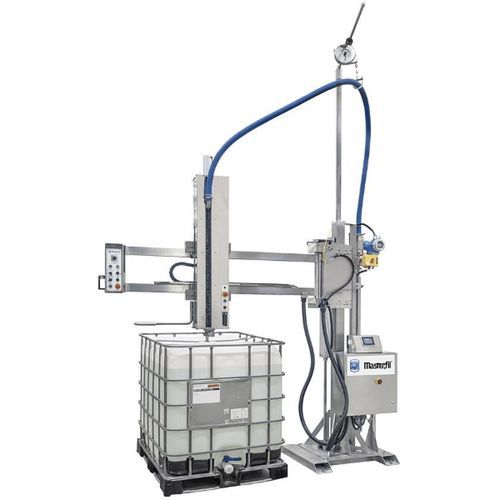

Semi-automatic filling machine

drumcontainerIBC

Overview
Heavy-duty liquid filling solution for drums, IBCs and large containers. Swing-arm flowmeter filler designed for high throughput, precision and safe, ergonomic operation.

Product details

• High-volume filling
  Handles fill volumes from 20 L up to 1,000 L, with typical output around 200 L/min depending on product and configuration.
• Precision performance
  Filling accuracy up to ±0.2% to reduce product giveaway and increase yield.
• Versatile application
  Suitable for drums, IBCs and large pallet-mounted containers; can act as a backup filler for smaller containers.
• Operator-friendly design
  Swinging boom arm with height adjustment for safer access and reduced operator strain.
• Fast changeover
  Recipe-driven controls enable quick, repeatable product and container changeovers to minimise downtime.
• Automation ready
  Capable of filling two pallets side-by-side; optional gravity or roller conveyors for streamlined infeed/outfeed.
• Durable construction
  Hygienic 316L stainless steel construction with PTFE contact parts for corrosive or demanding environments.
• Liquid compatibility
  Handles low to high viscosity products; configurable for foaming or non-foaming liquids.
• ATEX option
  Can be specified for flammable product applications (up to Zone 1 IIB 2G T4 where required).

Applications & container sizes

• Small drums: 20 L–30 L
• Standard drums: 60 L–200 L
• 1,000 L IBCs
• Large pallet-mounted containers

Technical specifications (table)
Typical filling accuracy — ±0.2%
Fill volume range — 20 - 1000 L
Typical product output — Application dependent, typically 200 L per minute
Machine height — 4057 mm (dependent on specification)
Machine width — 820 mm (dependent on specification)
Machine length — 2861 mm (dependent on specification)
Standard electrical supply — 240V / 400VAC, 3PH + N + Earth, 50/60 Hz
Compressed air working pressure — 6 bar (0.6 MPa)
ATEX zone qualification — Possible up to Zone 1 IIB 2G T4


Operational features

• Recipe-driven control system for stored product and container parameters to speed set-up and ensure repeatability.
• Height-adjustable swing-arm boom to access different vessel and pallet heights safely.
• Optional conveyors and pallet handling configurations to integrate into automated lines.

Technical characteristics

• Typical filling accuracy: ±0.2%
• Fill volume range: 20 - 1000 L
• Typical throughput: ~200 L/min (application dependent)
• Construction materials: 316L stainless steel; PTFE contact parts
• Machine footprint (typical): H 4057 mm × W 820 mm × L 2861 mm
• Electrical: 240V / 400VAC, 3PH + N + Earth, 50/60 Hz
• Compressed air: 6 bar (0.6 MPa)
• Optional ATEX configuration: up to Zone 1 IIB 2G T4
• Suitable for low to high viscosity liquids; optional gravity or roller conveyors for pallet handling
