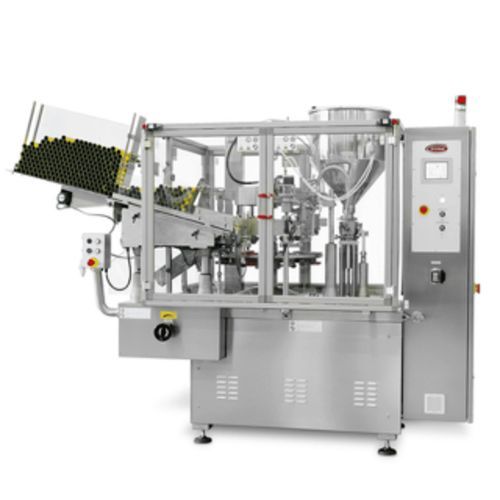

Motorized filling and sealing machine TGM B600

electricfully-automaticfor tubes

Product overview

• Ultra-High-Speed Performance — Up to 5,000 tubes/hour for metal tubes; up to 4,000 tubes/hour for plastic & laminate tubes.
• Fully Automatic Process Flow — Automated tube loading, positioning, filling, sealing and discharge for consistent, repeatable production with minimal operator intervention.
• Versatile Tube Compatibility — Handles metal, PE and laminate tubes across 50–240 mm length; 60 mm diameter option available.
• Hygienic, Easy-Clean Design — Crevice-free frame and oil-free operation for compliance with pharmaceutical and cosmetic hygiene requirements.
• Print Alignment — Automatic print detection and orientation as standard to ensure label/brand alignment and reduce rejects.
• Operator Safety & Ergonomics — Drives and motors located below the work surface for a clear, ergonomic operator area.
• Precision Filling & Sealing — Advanced dosing and sealing systems for consistent fill accuracy and seal integrity.
• Optional Modules — Internal/external tube cleaning and nitrogen or bisulphite insertion before/after filling.

Applications

• Pharmaceutical creams, ointments and gels
• Cosmetics and skincare products (lotions, balms, serums)
• Food and nutraceutical pastes
• Industrial pastes and adhesives
• Chemical and hygiene products

Automation functions

• Tube feeding
• Orientation and print registration
• Filling
• Sealing
• Discharge

Performance
Metal tubes — Up to 5,000 tubes/hour
Plastic & laminate tubes — Up to 4,000 tubes/hour

Technical specifications
Typical power consumption (metal) — 2 kW
Typical power consumption (plastic) — 5.5 kW
Water consumption — 1–2 l/min
Air (metal) — 200 l/min
Air (plastic) — 300 l/min
Metal tube diameters — 10–42 mm
Plastic tube diameters — 10–50 mm (60 mm option)
Tube length — 50–240 mm

Features / Technical data

• Model: TGM B600
• Throughput: up to 5,000 tubes/hour (metal); up to 4,000 tubes/hour (plastic & laminate)
• Supported materials: metal, PE, laminate
• Diameter ranges: metal 10–42 mm; plastic 10–50 mm (60 mm optional)
• Tube length range: 50–240 mm
• Design: crevice-free, easy-clean, lubricant-free/oil-free
• Standard: automatic print detection and alignment; drives located below work surface
• Options: internal/external tube cleaning; nitrogen or bisulphite insertion before/after filling
