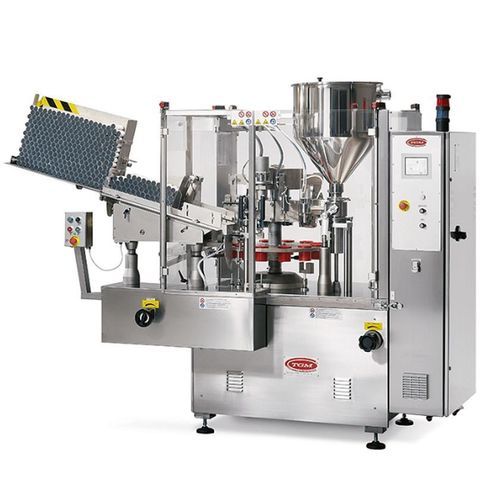

Electrically-operated filling and sealing machine TGM S400
motor-drivenmotorizedfully-automatic

Electrically-operated filling and sealing machine - TGM S400 - Adelphi - motor-driven / motorized / fully-automatic
Electrically-operated filling and sealing machine - TGM S400 - Adelphi - motor-driven / motorized / fully-automatic
Add to favorites
Compare this product
Go to the Adelphi website for more information

Characteristics

Operation
fully-automatic, motor-driven, motorized, electrically-operated
Container type
for tubes
Fill product
for pasty products
Product applications
for pharmaceutical products, for cosmetic products, for food, for tubes
Throughput

Min.: 0 p/h

Max.: 4,200 p/h

Description

Overview
  • Fully automatic tube filling and sealing machine engineered for pharmaceutical, cosmetic and food production with crevice-free, hygienic construction and a GMP-ready layout.
  • Performance: up to 4200 tubes/hour for metal tubes and up to 3200 tubes/hour for plastic and laminate tubes, with high-accuracy dosing and precision sealing systems for cosmetically clean, durable seals.


Typical applications
  • Pharmaceutical creams, gels and ointments
  • Cosmetic and skincare products
  • Nutraceutical and food pastes
  • Veterinary formulations
  • Personal care and hygiene items
  • Chemical and laboratory paste products


Key features
  • Ultra high-speed output: up to 4200 tubes/hour (metal); up to 3200 tubes/hour (plastic & laminate) — suitable for high-volume production and contract filling.
  • Fully automated tube handling: automatic feeding, orientation, positioning, filling, sealing and ejection for repeatable operation.
  • Versatile tube compatibility: handles metal, polyethylene (PE) and laminate tubes; optional support for tubes up to 60 mm diameter.
  • Premium sealing systems: metal tubes sealed by fold & roll crimping; plastic and laminate tubes sealed by hot-air or hot-jaw systems for reliable, cosmetically clean seals.
  • Hygienic, pharma-grade construction: smooth, crevice-free surfaces and lubricant-free mechanics reduce contamination risk and simplify cleaning.
  • Tube orientation & print alignment: integrated sensor ensures correct registration so printed graphics face forward, reducing rejects.
  • Safe and ergonomic layout: motors and drive assemblies located below the work area to maximise operator visibility and access.
  • Precision filling accuracy: high-accuracy dosing reduces giveaways, rework and product loss.
  • Integrated tube cleaning: options to remove particulates from tube interiors prior to filling for hygiene-sensitive or regulated products.
  • Inert gas or bisulphite insertion (optional): pre- and/or post-fill nitrogen or bisulphite dosing to improve product stability and reduce oxidation.


Technical specifications
  • Model: TGM S400
  • Maximum speed (metal tubes): up to 4200 tubes/hour
  • Maximum speed (plastic & laminate tubes): up to 3200 tubes/hour
  • Tube materials supported: metal, PE (polyethylene), laminate
  • Metal sealing method: fold & roll crimping
  • Plastic/laminate sealing methods: hot-air or hot-jaw sealing
  • Power (metal mode): 2 kW
  • Power (plastic mode): 5.5 kW
  • Water consumption: 1–2 l/min
  • Compressed air (metal): 150 l/min
  • Compressed air (plastic): 300 l/min
  • Tube diameter ranges: metal 10–42 mm; plastic 10–50 mm (60 mm option available)
  • Tube length range: 50–240 mm
  • Optional features: tube interior cleaning system; pre/post-fill nitrogen or bisulphite insertion; print alignment sensor
