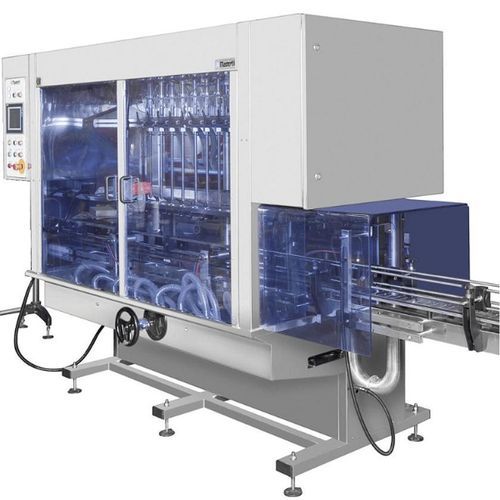

Automatic filling machine

drumbottlejerry can

Overview
High-precision automatic flowmeter filler for fast, accurate and reliable liquid filling across a wide range of container sizes and product types. Ideal for industries requiring precision and high throughput including chemicals, cosmetics, pharmaceuticals, food, automotive and household products.

Product details

• Wide Fill Range Accurately fills containers from 50 ml to 25 L, suitable for bottles, jerrycans and drums.
• High-Speed Output Handles up to 5,400 containers per hour (depending on configuration) for maximum line efficiency.
• Exceptional Accuracy Filling precision typically ±0.15% to ±0.2%, reducing waste and product giveaway.
• Scalable Design Configurable with 2–12 filling heads, expandable as production increases.
• Versatile Filling Adjustable nozzles and variable-speed filling for foaming and non-foaming liquids.
• Quick Changeovers Minimal downtime between product or container changes with fast-change components.
• Operator Friendly Store and recall multiple fill profiles for simple, low-skill operation.
• Waste Reducing Technology Integrated ‘no container, no fill’ sensing and precise flow control to prevent spills.
• Durable & Hygienic Product-contact parts in 316L stainless steel and PTFE for hygiene and corrosion resistance.
• ATEX-Compliant Options Configurations available for flammable products and volatile environments.

Service & Maintenance

• Hygienic parts 316L stainless steel and PTFE contact surfaces.
• Maintenance Daily flush-through and routine visual inspections recommended; modular design simplifies part replacement.

Characteristics / Technical specifications

• Typical Filling Accuracy: ±0.15% to ±0.2%
• Fill Volume Range: 50 ml – 25 L
• Typical Product Output: Up to 450 per hour per head (scales with number of heads; up to 5,400 containers/hour referenced)
• Filling Heads: Configurable 2–12
• Machine Height: 2.3 m
• Machine Frame (width options): 1.2 m / 1.6 m / 2.4 m
• Machine Length: Dependent on model
• Machine Weight: Approx. 1,000 kg
• Standard Electrical Supply: 400 VAC, 3PH + N + Earth 50/60 Hz
• Compressed Air Working Pressure: 6 bar (0.6 MPa)
• ATEX Zone Qualification: Possible up to Zone 1 IIB 2G T4
