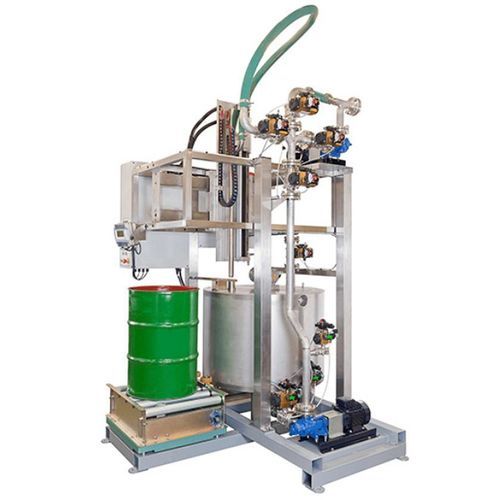

Dosing station

Overview
High-efficiency decanting unit designed for 200 L drums and 1,000 L IBCs. Provides precision dosing, fast cleaning and maximum product recovery for industrial fluid handling applications.

Product details

• High-volume output: Decants up to 50 L/min; pump capacity up to 195 L/min at 1,000 cSt.
• Wide viscosity & temperature range: Handles products up to 25,000 cSt and temperatures up to 100 °C.
• Container compatibility: Suited for 200 L drums and 1,000 L IBCs.
• Precision dosing & enclosed transfer: Repeatable, accurate decanting with reduced contamination risk.
• Self-cleaning rinse system: Lance cleans in the included 500–1,000 L rinse kettle for immediate reuse.
• Maximum product recovery: Drum tilt and hot base oil rinse minimise residual waste.
• Fast changeovers: Engineered for quick product changes and short cleaning cycles.
• Industrial construction: Built for continuous use in production environments.

Hygiene & Cleaning

• Enclosed transfer reduces contamination and exposure.
• Self-cleaning lance technology accelerates changeovers.
• Hygienic stainless steel surfaces (e.g. 304) and quick connections minimise contact parts.
• Consistent dosing improves process hygiene versus manual handling.

Technical specifications

• Typical decanting accuracy: ±0.2%
• Decant volume range: 25 kg - 1,000 kg
• Typical product output: 50 L/min
• Pump output (example): 195 L/min at 1,000 cSt
• Machine height: 4.7 m (top of hose support)
• Machine width: 2.2 m
• Machine length: 2.4 m
• Standard electrical supply: 400 VAC, 3PH + N + Earth, 50/60 Hz
• Compressed air working pressure: 6 bar (0.6 MPa)
• Decanting pump output: 50 L/min @ 5,000 cSt
• Cleaning pump output: 50 L/min
• Rinsing kettle volume: 500 L - 1,000 L
• Maximum product temperature: 80 - 100 °C
• Maximum product viscosity: 25,000 cSt

Service & maintenance
Routine daily rinsing and visual inspections recommended. Replace wear parts per operating hours and follow site safety procedures.

Key FAQs

• Decanting speed: up to 50 L/min; pump supports peaks to 195 L/min at low viscosity.
• Hot product handling: supports up to 80–100 °C depending on process requirements.
• Cleaning between products: designed for rapid changeovers via self-cleaning lance, stainless surfaces and quick couplings.
• Hygienic benefits: closed transfer, repeatable dosing and easy cleaning reduce contamination risk.
