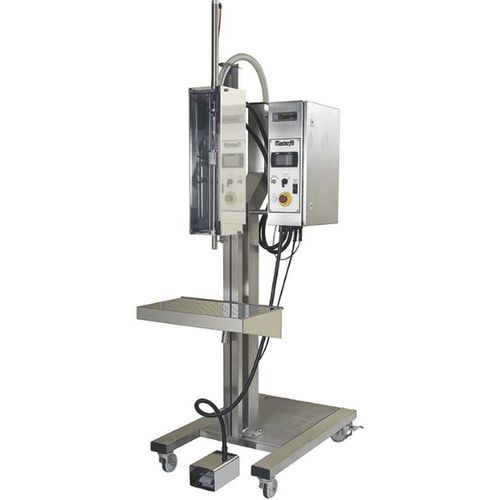

Semi-automatic filling machine Masterfil

bottlefor low-viscosity liquidsfor viscous liquids

Overview
Reliable semi-automatic flowmeter filler for precise, fast and versatile liquid filling. Standard fill range 250 ml–5 L with optional multi-shot up to 30 L. Suitable for foaming and non-foaming products; designed for industrial production environments.

Product details

• Flexible fill range
  Accurately fills containers from 250 ml to 5 L; optional multi-shot capability up to 30 L for larger containers.
• Production speed
  Handles up to 1,200 bottles per hour depending on configuration to maintain efficient line throughput.
• Exceptional accuracy
  Filling precision up to ±0.2% to reduce product giveaway and improve margins.
• No pistons
  Flowmeter principle eliminates pistons, simplifying cleaning and shortening changeover times.
• Versatile nozzles
  Adjustable nozzles for foaming and non-foaming liquids at variable speeds.
• Viscosity range
  Suitable for low to high viscosity liquids, from solvents to oils and gels.
• Hygienic construction
  Product-contact parts in 316L stainless steel and PTFE for safe, efficient cleaning.
• Configurable heads
  Available with 1–2 filling heads depending on production requirements.
• ATEX option
  Available for flammable products (possible compliance up to Zone 1 IIB 2G T4).

Technical specifications
Typical filling accuracy: ±0.2%
Fill volume range: 250 ml - 30 L (standard 250 ml - 5 L; multi-shot up to 30 L)
Typical product output: Up to 10 fills/min per head (up to 1,200 bottles/hour depending on setup)
Machine height: approx. 2.3 m
Machine width: approx. 1.0 m
Machine length: approx. 1.1 m
Machine weight: approx. 250 kg
Standard electrical supply: 240V / 400VAC, 3PH + N + Earth, 50/60 Hz
ATEX zone qualification: possible up to Zone 1 IIB 2G T4

Service & Maintenance

• Hygienic parts
  316L stainless steel and PTFE product-contact surfaces.
• Maintenance
  Daily flush-through and visual inspections recommended; quick-change design reduces downtime.

Characteristics / technical specifications

• Fill range: 250 ml – 5 L standard; multi-shot option up to 30 L.
• Accuracy: ±0.2% (typical).
• Throughput: up to 1,200 bottles/hour (model/configuration dependent).
• Construction: 316L stainless steel with PTFE contact parts.
• Viscosity: suitable for low, medium and high viscosity liquids, including foaming products.
• Configuration: 1–2 filling heads; adjustable nozzles.
• ATEX: available for hazardous/flammable products (Zone 1 IIB 2G T4 possible).
• Dimensions (approx): H 2.3 m × W 1.0 m × L 1.1 m.
• Weight (approx): 250 kg.
• Electrical supply: 240V / 400VAC, 3PH + N + Earth, 50/60 Hz.
