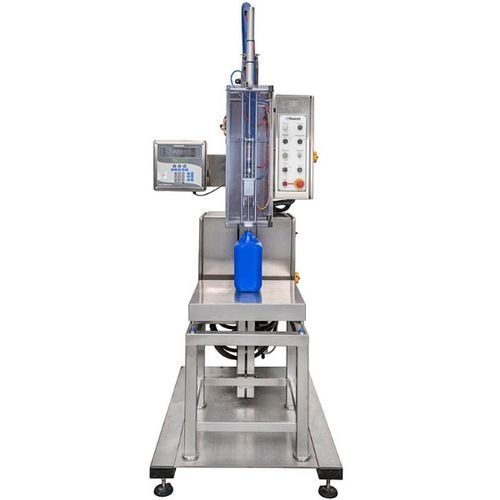

Automatic filling machine

drumbottlecontainer

Overview
Precision bench-height weigh scale filler for accurate, weight-based liquid filling from 1 kg to 60 kg nominal. Designed to handle foaming and non-foaming products, suitable for washdown and hazardous environments. Typical accuracy ±0.2% and configurable for high throughput depending on product and number of heads.

Key features

• Flexible fill range: Accurately fills containers from 1–60 kg nominal (volumetric reference 1–25 L), suitable for medium to large packs.
• High throughput: Capable of filling up to 1,200 containers per hour depending on configuration; typical output up to 10 fills/min per head.
• Exceptional accuracy: Typical tolerance ±0.2% to minimise waste and meet regulatory requirements.
• Robust construction: Designed for washdown and hostile industrial environments; appropriate materials for corrosive settings.
• Versatile nozzles: Adjustable to manage foaming and non-foaming liquids with variable speed control.
• Quick changeovers: Piston-free design for reduced downtime between product or container changes.
• Hygienic & low maintenance: Contact parts in 316L stainless steel and PTFE to reduce cleaning time and fluid consumption.
• Wide viscosity range: Handles low to high viscosity liquids.
• Compliance assured: Fill accuracies comply with weights & measures requirements (DTI Certification No. 2001/15).
• Customisable options: Configurable with 1–2 filling heads, ATEX versions available for flammable products (possible to Zone 1 IIB 2G T4).

Typical applications

• Medium to large containers: jerrycans, drums, pails, bulk bottles and other industrial containers; suitable for industrial, chemical, food and hazardous-area filling applications.

Technical specifications (table)
Typical Filling Accuracy — ±0.2%
Fill Volume Range (Or Ranges) — 1 - 25 l
Mass fill range referenced on page — 1 kg – 60 kg nominal
Typical Product Output — Up to 10 per min per head
Maximum Production — Up to 1,200 containers/hr (depends on configuration)
Machine Height — 2.3 m (approx)
Machine Width — 1.0 m (approx)
Machine Length — 1.1 m (approx)
Machine Weight — 250 kg (approx)
Standard Electrical Supply — 240V / 400VAC, 3PH + N + Earth 50/60 Hz
Compressed Air Working Pressure — 6 bar (0.6 MPa)
ATEX Zone Qualification — Possible up to Zone 1 IIB 2G T4

Service & Maintenance

• Hygienic parts: Contact surfaces in 316L stainless steel and PTFE.
• Maintenance: Daily flush-through and visual inspections recommended to ensure performance.

FAQs / Operational notes

• Use: Precise, weight-based single-shot filling of liquids from 1–60 kg; suitable for jerrycans, drums and bulk packs.
• Container sizes supported: 1–60 kg fills; medium to large packaging formats including jerrycans, drums, pails and bulk bottles.
• Maximum production speed: Up to 1,200 containers/hr depending on fill weight, viscosity, operator workflow and number of filling heads.
• Filling heads: Supplied with 1 head for flexibility or 2 heads for increased throughput.
• Environment suitability: Designed for washdown, corrosive/hostile settings and hazardous zones (ATEX versions available).
