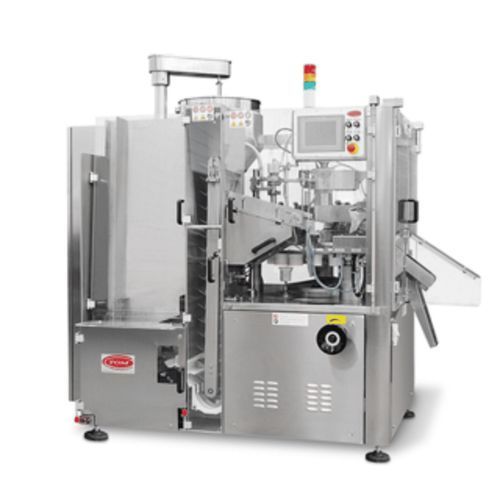

Electrically-operated filling and sealing machine TGM B620

fully-automaticfor tubesfor pasty products

Overview
Ultra-high-speed tube filling and sealing machine delivering up to 6,000 tubes/hour (metal) and up to 4,800 tubes/hour (plastic & laminate). Designed for continuous, high-volume pharmaceutical, cosmetic and food production with fully automated process flow.

Key product features

• High-speed output
  • Up to 6,000 tubes/hour for metal tubes
  • Up to 4,800 tubes/hour for plastic & laminate tubes
• Fully automatic process flow: automated tube loading, orientation, filling, sealing and discharge for consistent, repeatable production
• Ergonomic tube loading system: swing-away loading platform for fast set-up and rapid changeovers
• Versatile tube compatibility: supports metal, PE and laminate tubes; standard ranges cover common diameters and lengths; up to 60 mm diameter available as an option
• Hygienic GMP-ready design
  • Crevice-free stainless steel construction
  • Lubricant- and oil-free mechanics
• Tube print orientation & detection: automatic print recognition and alignment before filling to reduce misprints and waste
• Operator safety & clean workspace: drive mechanisms located beneath the work surface to keep moving parts out of the sterile zone and simplify cleaning
• High-quality sealing systems
  • Metal tubes: fold & roll crimping
  • Plastic & laminate tubes: hot-air sealing
• Optional add-ons
  • Tube cleaning system
  • Nitrogen or bisulphite insertion before and/or after filling for oxygen-sensitive formulations

Applications

• Pharmaceutical creams, gels and ointments
• Cosmetics and skincare products
• Food and nutraceutical pastes
• Industrial adhesives and chemical pastes
• Contract tube-filling (CMO/CDMO) production lines

Performance - Speeds
Metal tubes — Up to 6,000 tubes/hour
Plastic & laminate tubes — Up to 4,800 tubes/hour

Technical specifications

• Typical power consumption (metal): 3.5 kW
• Typical power consumption (plastic): 6.5 kW
• Water consumption: 1–2 l/min
• Air (metal): 300 l/min
• Air (plastic): 400 l/min
• Metal tube diameters (standard): 10–42 mm
• Plastic tube diameters (standard): 10–50 mm (up to 60 mm optional)
• Tube length range: 50–240 mm
• Automatic tube print detection, orientation and alignment prior to filling
• Hygienic stainless steel construction; lubricant- and oil-free mechanics suitable for GMP environments
