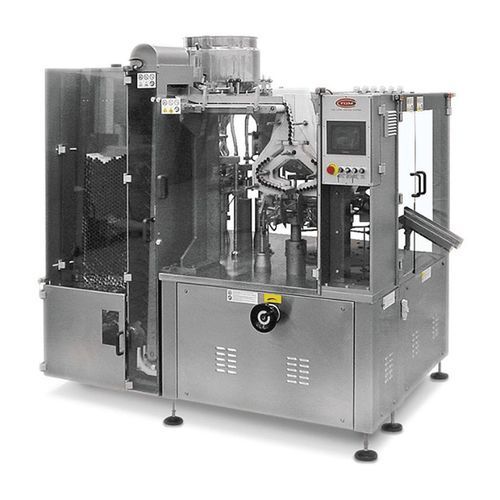

Automatic filling machine TGM T150

for tubesliquidsfood

Overview
The TGM T150 is an automatic tube filling and sealing machine with dual‑tube simultaneous operation, engineered for high‑speed, large‑batch production. It handles metal, plastic and laminate tubes with ergonomic loading and hygienic, crevice‑free design suited to regulated manufacturing environments.

Product details

• Dual‑tube high‑speed filling: Simultaneous processing of two tubes for outputs up to 11,000 tubes per hour.
• Ergonomic tube loader: Large accessible loader to minimise manual handling and support continuous operation.
• Multi‑format compatibility: With optional tooling, supports metal, plastic and laminate tubes across product ranges.
• Hygienic construction: Crevice‑free surfaces for simplified cleaning and reduced maintenance.
• Filling and sealing accuracy: Designed to maintain consistent fill volumes and reliable seals for regulated sectors.

Technical specifications (table representation)
Tube Size — Metal | Plastic
Diameter: 10 - 42 mm | 10 - 50 mm
Length: 50 - 240 mm | 50 - 240 mm
Power: 5.5 kW | 12 kW

Consumption (table representation)
Water: (Metal) - none specified | (Plastic) 1 - 2 l/min
Air: (Metal) 300 l/min | (Plastic) 500 l/min

Application & Performance
The TGM T150 is intended for high‑throughput filling and sealing in pharmaceuticals, cosmetics and personal care, chemicals and food production. Its compact footprint and ergonomic design enable installation in constrained production areas while delivering high productivity and repeatable accuracy.

Technical characteristics / specifications

• Model: TGM T150
• Operation: Automatic, dual‑tube simultaneous filling
• Maximum output: Up to 11,000 tubes per hour
• Supported tube types: Metal, Plastic, Laminate (with optional accessories)
• Tube diameter: Metal 10–42 mm; Plastic 10–50 mm
• Tube length: 50–240 mm
• Power requirement: Metal configuration 5.5 kW; Plastic configuration 12 kW
• Water consumption (plastic): 1–2 l/min
• Air consumption: Metal 300 l/min; Plastic 500 l/min
• Design: Hygienic, crevice‑free surfaces for easy cleaning
• Ergonomics: Large accessible tube loader to reduce manual handling
