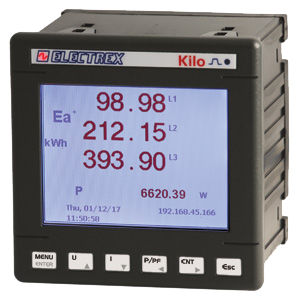

LED analyzer PFNK9-1Q7D9-0MM KILO RJ45 96 PQmonitoringfor electrical networksAC energy network
Add to favorites
Compare this product
Characteristics
- Measured entity
- LED
- Application domain
- monitoring, for electrical networks, AC energy network
- Measured value
- power quality, power, voltage, energy
- Other characteristics
- RS485, data acquisition, battery-powered, graphic, DIN 96x96
Description
Product overview
Power Quality Energy Analyzer & Data Manager. Power quality analysis (EN 50160 and EN 61000-4-30). Accuracy class 0.5S and single harmonics up to the 51st order. Perennial, battery-powered astronomical clock / calendar and non-volatile memory. Remote firmware update. RJ45 and RS485 slave ports. Graphic LCD display. 2 digital inputs and 2 digital outputs with separate common. 1 calibration LED. ExpBus for external devices (inputs and outputs, environmental sensors). NFC equipped. Size 96×96 mm. Power supply 85 ÷ 265Vac. Complies with EN 50470-1 and EN 50470-3.
Note
Kilo series devices may also be available in other hardware configurations. A code creation table and product datasheet exist for building the correct code/version.
Compatible current transformers
Characteristics / Technical specifications
Power Quality Energy Analyzer & Data Manager. Power quality analysis (EN 50160 and EN 61000-4-30). Accuracy class 0.5S and single harmonics up to the 51st order. Perennial, battery-powered astronomical clock / calendar and non-volatile memory. Remote firmware update. RJ45 and RS485 slave ports. Graphic LCD display. 2 digital inputs and 2 digital outputs with separate common. 1 calibration LED. ExpBus for external devices (inputs and outputs, environmental sensors). NFC equipped. Size 96×96 mm. Power supply 85 ÷ 265Vac. Complies with EN 50470-1 and EN 50470-3.
Note
Kilo series devices may also be available in other hardware configurations. A code creation table and product datasheet exist for building the correct code/version.
Compatible current transformers
- Split series current transformers
- Mini series split current transformers
Characteristics / Technical specifications
- Function: Power Quality Energy Analyzer & Data Manager
- Standards: Power quality analysis per EN 50160 and EN 61000-4-30
- Accuracy: Class 0.5S
- Harmonics: Single harmonics up to the 51st order
- Clock/Memory: Perennial, battery-powered astronomical clock / calendar and non-volatile memory
- Firmware: Remote firmware update capability
- Communications: RJ45 and RS485 slave ports
- Display: Graphic LCD display
- Inputs/Outputs: 2 digital inputs (DI) and 2 digital outputs (DO) with separate common
- Indicator: 1 calibration LED
- Expansion: ExpBus for external devices (inputs/outputs, environmental sensors)
- Connectivity: NFC equipped
- Dimensions: 96×96 mm
- Power supply: 85 ÷ 265Vac
- Metering compliance: Complies with EN 50470-1 and EN 50470-3
Catalogs
No catalogs are available for this product.
See all of ELECTREX‘s catalogsOther ELECTREX products
POWER QUALITY ENERGY ANALYZER & WEB DATA MANAGER
