Overview

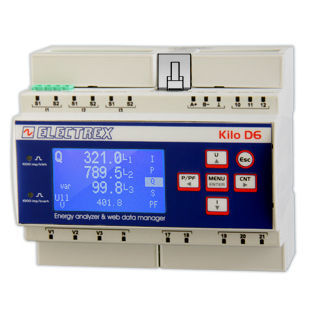

Power quality energy analyzer and Wi‑Fi Web Data Manager for monitoring and power quality analysis. Provides Wi‑Fi communication via external antenna (cod. PFC3530 included). Performs power quality analysis according to EN 50160 and EN 61000-4-30. Acts as a network bridge between RJ45 and/or Wi‑Fi ports and the RS485 port for Modbus communication with Electrex instruments on the subnet. Accuracy class 0.5S with measurement of single harmonics up to the 51st order. Perennial battery-powered astronomical clock/calendar and non-volatile memory. Remote firmware update supported. Graphic LCD display. DIN-rail housing, 6 modules wide. Power supply 85 ÷ 265 Vac.

Included upgrades

• 2 x PFSU940-01 Log 8
• 1 x PFSU940-25 Open Log
• PFSU940-05 Web

I/O and interfaces

• Wi‑Fi communication via external antenna (PFC3530 included)
• RJ45 Ethernet port
• RS485 port for Modbus communication (network bridge between RJ45/Wi‑Fi and RS485)
• ExpBus for external devices (I/O, environmental sensors)
• NFC equipped

User interface and indicators

• Graphic LCD display
• 2 calibration LEDs

Digital I/O

• 2 digital inputs
• 2 digital outputs
• Digital inputs and outputs have separate commons

Compatibility
The current transformers compatible with this Kilo series version are available in the accessories sections:

• • Split series current transformers
  • Mini series split current transformers

Standards and compliance

• Power quality analysis: EN 50160 and EN 61000-4-30
• Metering compliance: EN 50470-1 and EN 50470-3

Notes
Kilo series devices may be supplied in other hardware configurations; code variants are defined via the code creation table or product datasheet.

Technical characteristics / specifications

• Model family: Kilo series
• Denomination: KILO NET WI-FI EDA D6
• Product code shown: PFNK6-1QAD9-121
• Included antenna: external antenna cod. PFC3530 (included)
• Accuracy class: 0.5S
• Harmonics: single harmonics up to the 51st order
• Clock/Calendar: perennial, battery-powered astronomical clock/calendar
• Memory: non-volatile memory
• Firmware: remote firmware update supported
• Display: Graphic LCD
• Digital inputs: 2
• Digital outputs: 2
• Digital I/O commons: separate common for inputs and outputs
• Calibration: 2 calibration LEDs
• Expansion: ExpBus for external devices and environmental sensors
• Connectivity: RJ45 Ethernet, Wi‑Fi, RS485 (Modbus)
• NFC: equipped
• Mounting: DIN rail, 6 modules
• Power supply: 85 ÷ 265 Vac
• Standards: EN 50160, EN 61000-4-30, EN 50470-1, EN 50470-3
• Included upgrades: 2 x PFSU940-01 (Log 8), 1 x PFSU940-25 (Open Log), PFSU940-05 (Web)
