Monitoring analyzer PFNK6-FQ5D9-A21 KILO F NET D6 PQ WEB LOG 16 CHARTS

for electrical networksAC energy networkfor networks

Overview

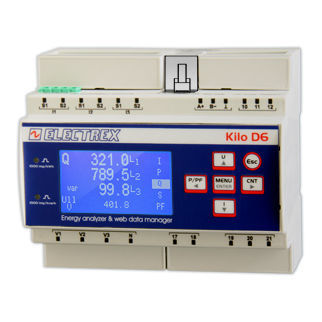

Power Quality Energy Analyzer & Web Data Manager for monitoring and managing electrical installations. Performs power quality analysis compliant with EN 50160 and EN 61000-4-30. Requires FCTS series flexible split-core current transformers (not included). Acts as a network bridge between RJ45 and RS485 ports to enable Modbus communication with Electrex instruments on the subnet.

Included upgrades

• n. 2 PFSU940-01 Log 8
• n. 1 PFSU940-25 Open Log
• PFSU940-05 Web
• PFSU940-30 Charts

Code
Code: PFNK6-FQ5D9-A21

Documentation available

• Kilo D6 and 96 product datasheet (pdf)
• Code creation table for Net families (pdf)
• Installation instructions for Kilo F RJ45 D6 and Kilo F net D6 2DI/2DO 4COMMON (pdf)
• FCTS FLEXIBLE SPLIT CT product datasheet (pdf)

Notes
Kilo series devices may be requested in other hardware configurations. To build the correct code for different versions, refer to the code creation table or the product datasheet.

Compatible current transformers

• FCTS series flexible split current transformers (not included)

Technical specifications

• Type: Power Quality Energy Analyzer & Web Data Manager
• Power quality standards: EN 50160, EN 61000-4-30
• Compatible CTs: FCTS series flexible split-core CTs (not included)
• Network bridge: RJ45 ↔ RS485 for Modbus communication with Electrex instruments
• Included upgrades: 2×PFSU940-01 Log 8; 1×PFSU940-25 Open Log; PFSU940-05 Web; PFSU940-30 Charts
• Accuracy class: 0.5S
• Single harmonics analysis up to the 51st order
• Astronomical battery-powered perpetual clock/calendar
• Non-volatile memory
• Remote firmware update capability
• Graphic LCD display
• 2 digital inputs (2DI)
• 2 digital outputs (2DO) with 4 separate common contacts
• 2 calibration LEDs
• ExpBus for external devices (I/Os, environmental sensors)
• NFC equipped
• DIN rail size: 6 modules
• Power supply: 85 ÷ 265 Vac
• Compliances: EN 50470-1 & EN 50470-3; EN 50160 and EN 61000-4-30
